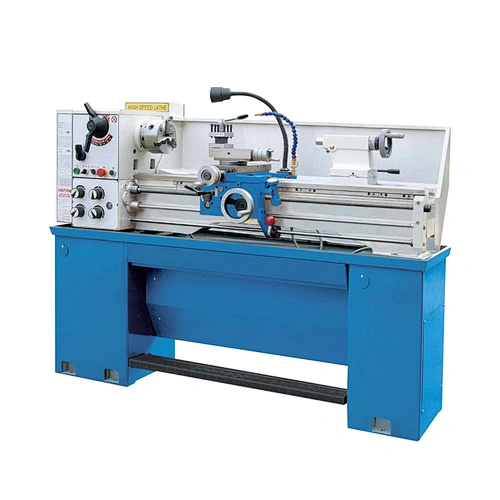

Product Features:
♦Precision ground hardened bedways
♦The spindle is supported wish precision roller bearings
♦Headstock gears are made of high quality steel, ground and hardened
♦Removable gap is provided for larger diameter work
♦Easy operation speed change levers
♦Easy operating gear box has various feeds and thread cutting function
♦Two types for selection: with foot stand in reserve or without foot stand
Standard Accessories:

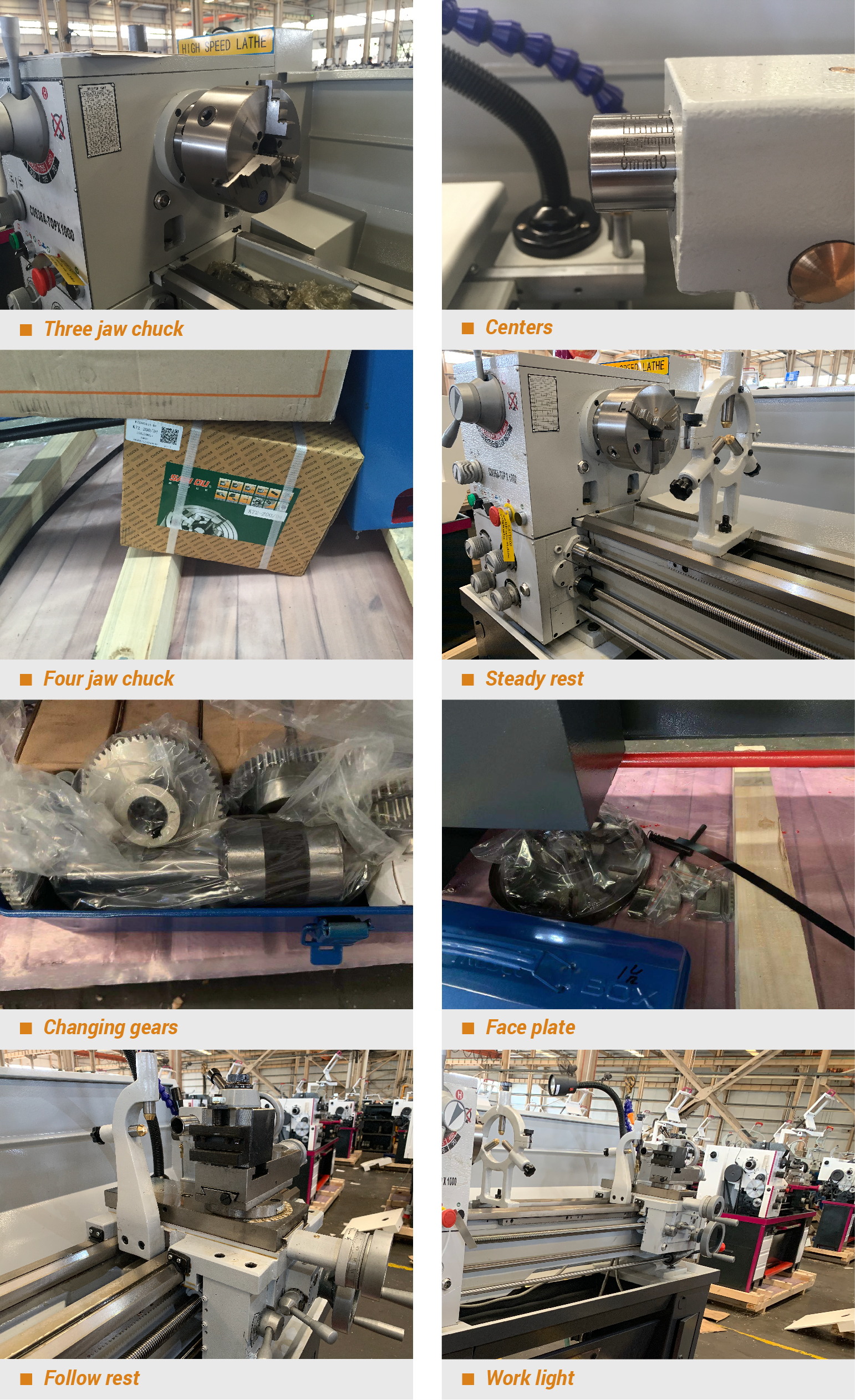

♦Reduction sleeves MT5/3# ♦Centers ♦Three jaw chuck ♦Changing gears ♦Tool box and tools 1 set
Special Accessories:
♦Four jaw chuck ♦Face plate ♦Steady rest ♦Follow rest ♦Live center ♦Bed base ♦Work light ♦Foot brake ♦Coolant

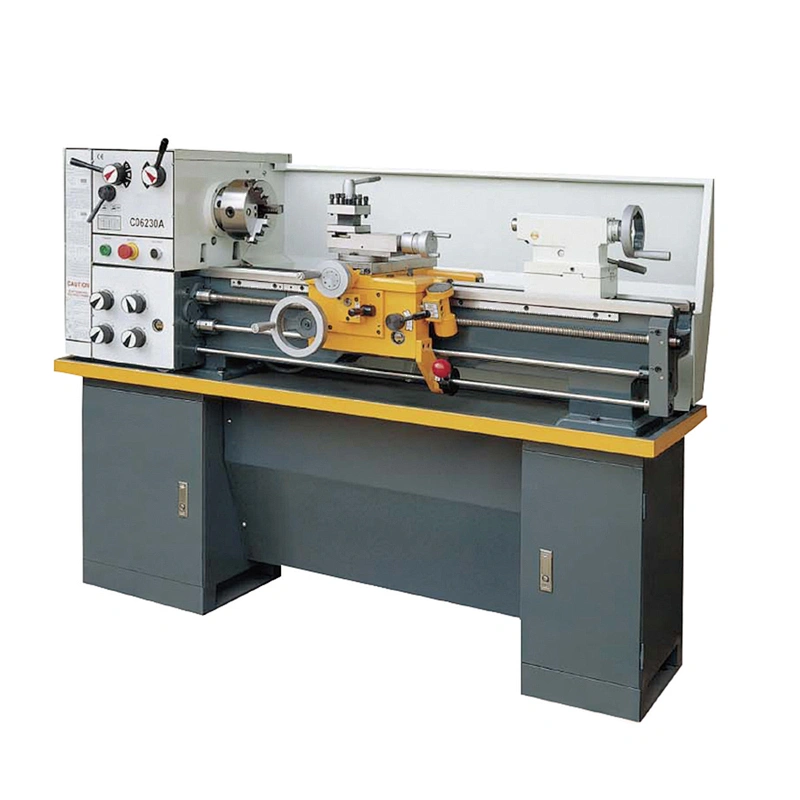

Specification | C06230A | C06230A (Variable-speed) | C06230B |
Swing over bed | 300mm (12") | 300mm (12") | |
Swing over cross slide | 178mm(7’’) | 178mm(7’’ ) | |
Swing in gap diameter | 430mm (17’’) | 430mm (17") | |
Length of work piece | 914mm (36’’) | 914mm (36 ”) | |
Length of turning | 760mm (30’’) | 760mm (30’’) | |
Spindle bore | 38mm (1-1/2") | 38mm (1-1/2") | |
Taper of spindle bore | M.T. No.5 | M.T. No.5 | |
Range of spindle speed(9steps) | 60-1500r/min | 60-2000r/min | 60-2000r/min |
Quill Taper | M.T.No.3 | M.T.No.3 | |
Range of metric threads to be cut(29kinds) | 0.4-7mm | 0.4-7mm | |
Range of inch threads to be cut(40kinds) | 4-56T.P.I | 4-56T.P.I | |
Pitches of three feed lead screws | 3mm (8T.P.L) | 3mm (8T.P.L) | |
Longitudinal feed per revolution of spindle(40 kinds) | 0.052-1.392 (0.002-0.0548") | 0.052-1.392 (0.002-0.0548") | |
Cross feed per revolution of spindle(40kinds) | 0.014-0.38 (0.0007-0.0187") | 0.014-0.38 v (0.0007-0.0187") | |
Max. Longitudinal travel of saddle | 800mm (31-1/2") | 800mm (31-1/2") | |
Max. travel of cross slide | 160mm (5-5/16") | 160mm (5-5/16") | |
Max. travel of top slide | 85mm (3-1/4") | 85mm (3-1/4") | |
Quill travel | 95mm (3-3/4") | 95mm (3-3/4") | |
Main motor power | 1.1kW (1.5HP) | 1.1kW (1.5HP) | |
Motor frequency | 60Hz or 50Hz | 60Hzor50Hz | |
Overall dimensions(LxWxH) | 160x73x127cm | 160x73x127cm | |
Net weight | 460kg | 460kg | |
Packing dimensions(Lx Wx H) | 168x75x142cm | 168x75x142cm | |
