Product Features:
♦Precision ground hardened bedways
♦The spindle is supported wish precision roller bearings
♦Headstock gears are made of high quality steel, ground and hardened
♦Removable gap is provided for larger diameter work
♦Easy operation speed change levers
♦Easy operating gear box has various feeds and thread cutting function
♦Two types for selection: with foot stand in reserve or without foot stand
Standard Accessories:
♦Reduction sleeves MT5/3# ♦Centers ♦Three jaw chuck ♦Changing gears ♦Tool box and tools 1 set
Special Accessories:
♦Four jaw chuck ♦Face plate ♦Steady rest ♦Follow rest ♦Live center ♦Bed base ♦Work light ♦Foot brake ♦Coolant

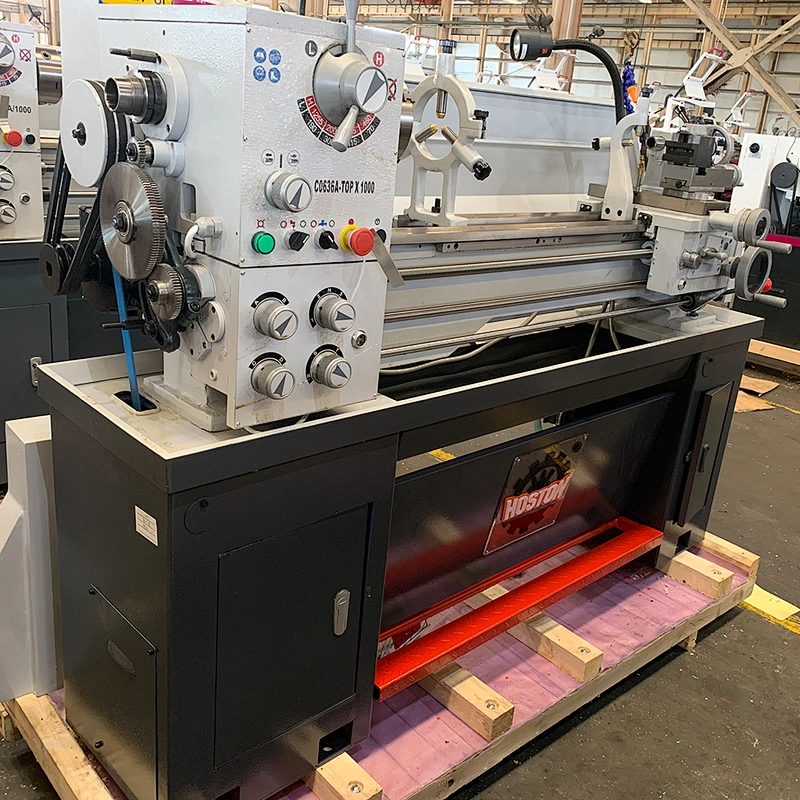

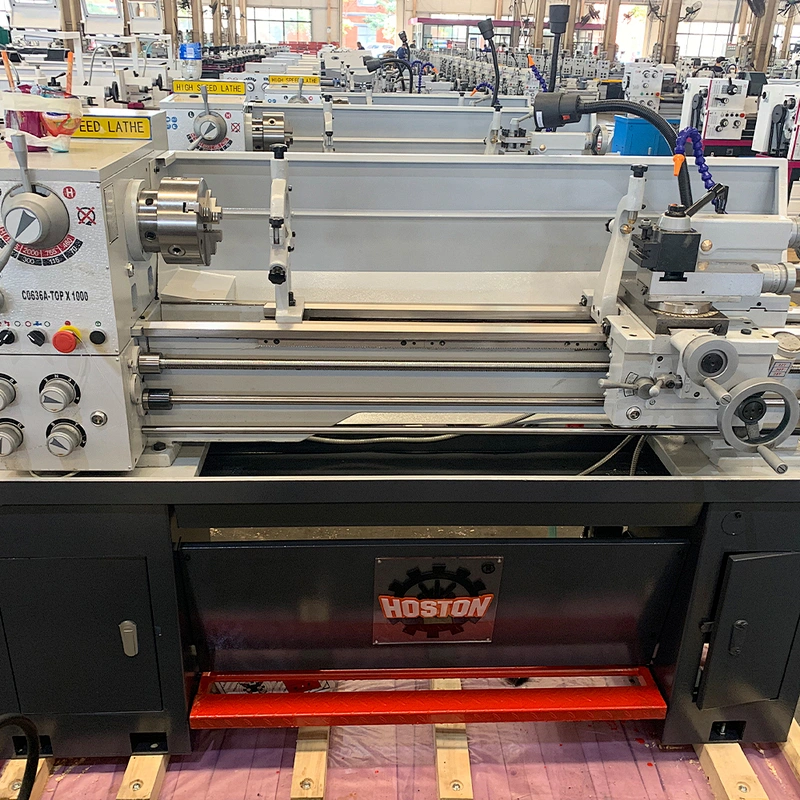

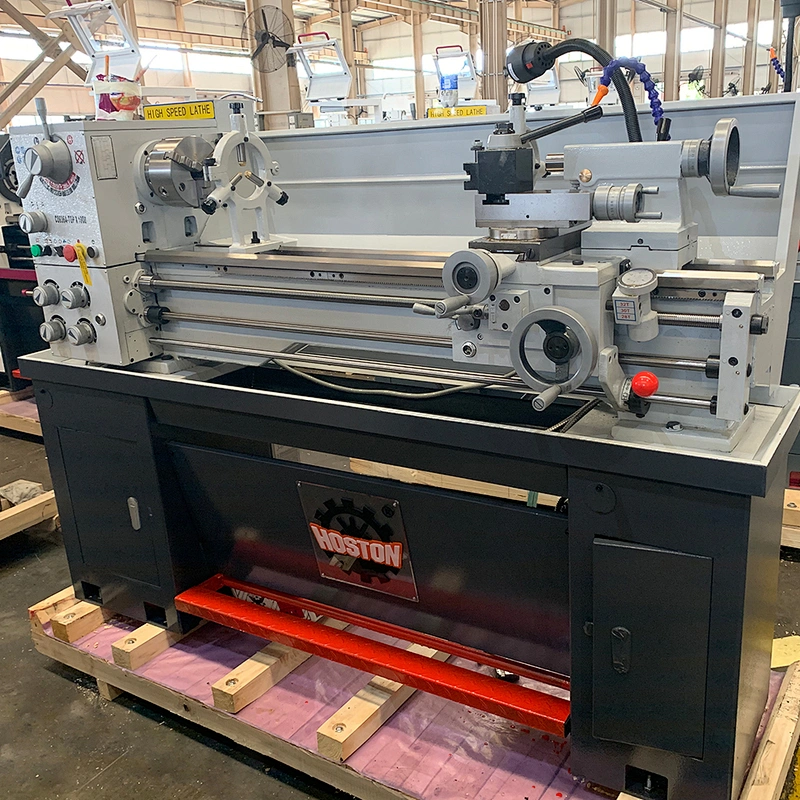

MODELS | C0636A |
Swing over bed | 360mm(14") |
Swing over cross slide | 224mm(8-13/16") |
Swing in gap diameter | 502mm( 19-3/4") |
Swing in length | 210mm(8-1/4") |
Center height | 179mm(7") |
Center Distance | 1000mm(40") |
Bed width | 187mm(7-3/8") |
Bed length | 1655mm(65-1/8") |
Bed height | 290mm (11- 13/32") |
Spindle bore | 38mm(1-1/2") |
Spindle nose | D1-4" |
Taper in nose | MTN0.5 |
Speeds number | 8 |
Range of spindle speed | 70-2000 r/min |
Cross slide width | 130mm (5-3/32") |
Cross slide travel | 170mm(6-11/16 ") |
Compound rest width | 80mm(3-1/8") |
Compound rest travel | 95mm(3-9/16") |
Lead screw diameter | 22mm(7/8") |
Lead screw thread | 8T.P.I. or 3mm |
Feed rod diameter | 19mm(3/4") |
Cutting tool max section | 16mmx l6mm (5/8" x 5/8") |
Threads imperial pitches | 34 Nos.4-56 T.P.I |
Threads metric pitches | 26 Nos.0.4-7M.P |
Longitudinal feeds imperial | 32 Nos.0.002-0.548 " /Rev |
Longitudinal feeds metric | 32 Nos.0.052-0.392mm/Rev |
Cross feeds imperial | 32NOS.0.007-0.0187"/Rev |
Cross feeds metric | 32 Nos.0.014-0.380mm/Rev |
Quill diameter | 32mm( 1-1/4") |
Quill travel | 100mm(3-15/16") |
Quill taper | MTNO.3 |
Main motor | 1.5kW(2HP) |
