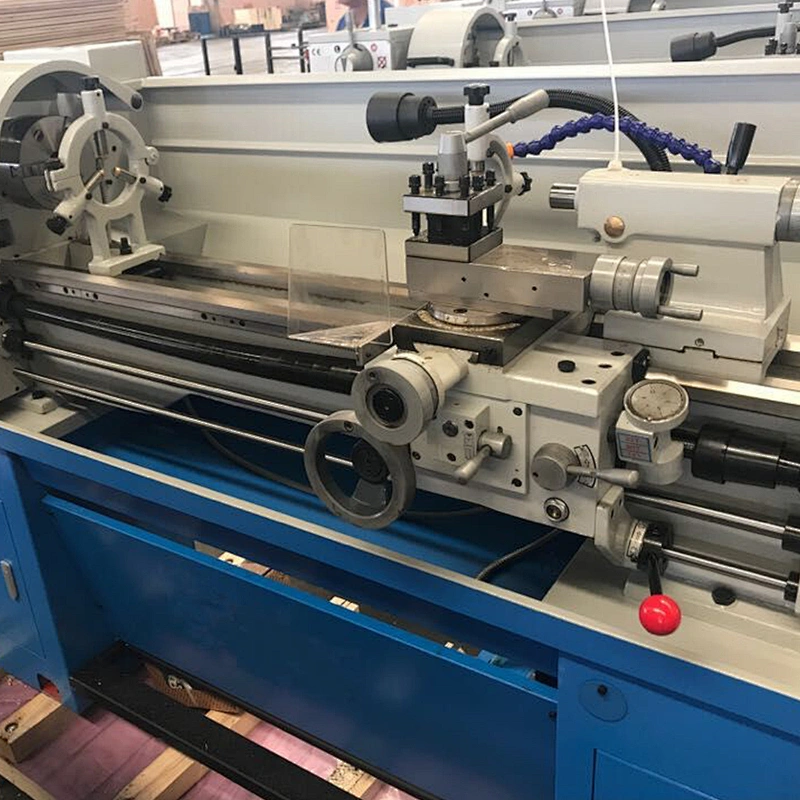

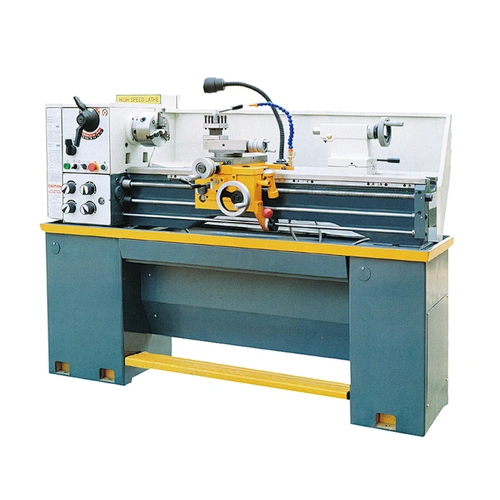

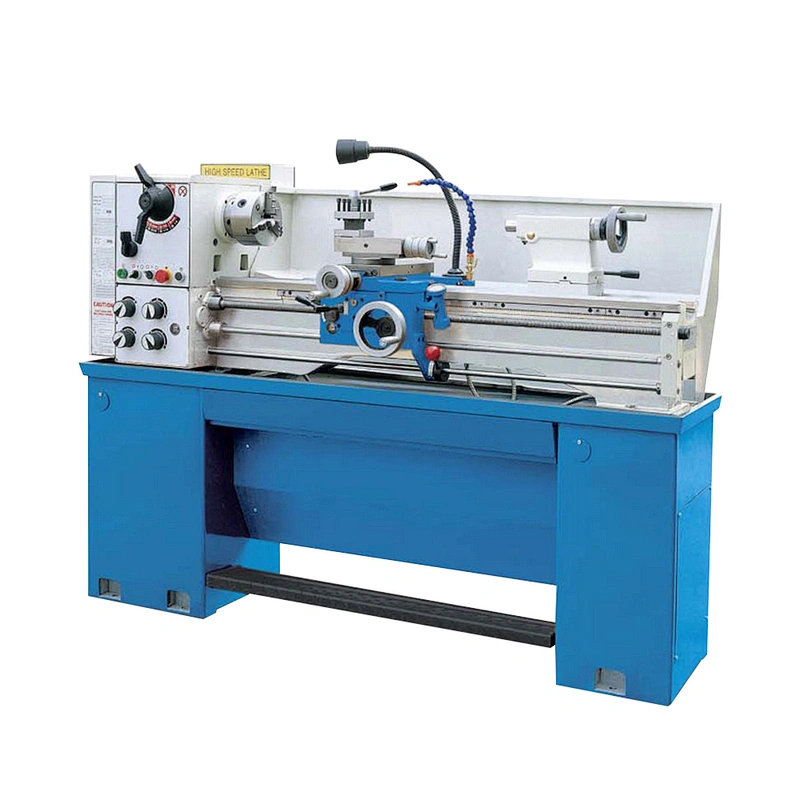

Product Feature:
1.Precision ground and supersonic frequency hardened bed ways
2. The spindle is supported with precision roller bearings
3. Headstock gears are made of high quality steel, ground and hardened
4. Spindle speed range 70-2000RPM
5. Sealed and easy operating feed box has various feeds and thread cutting functions.

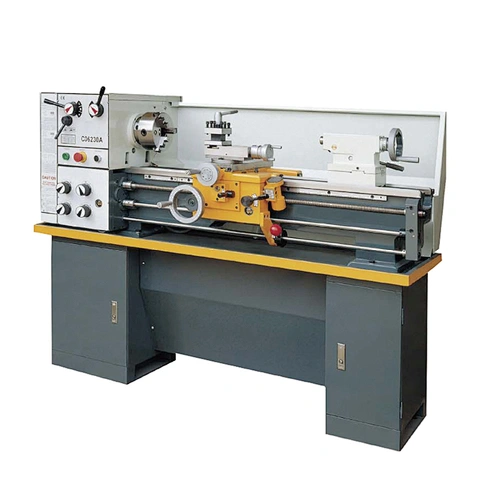

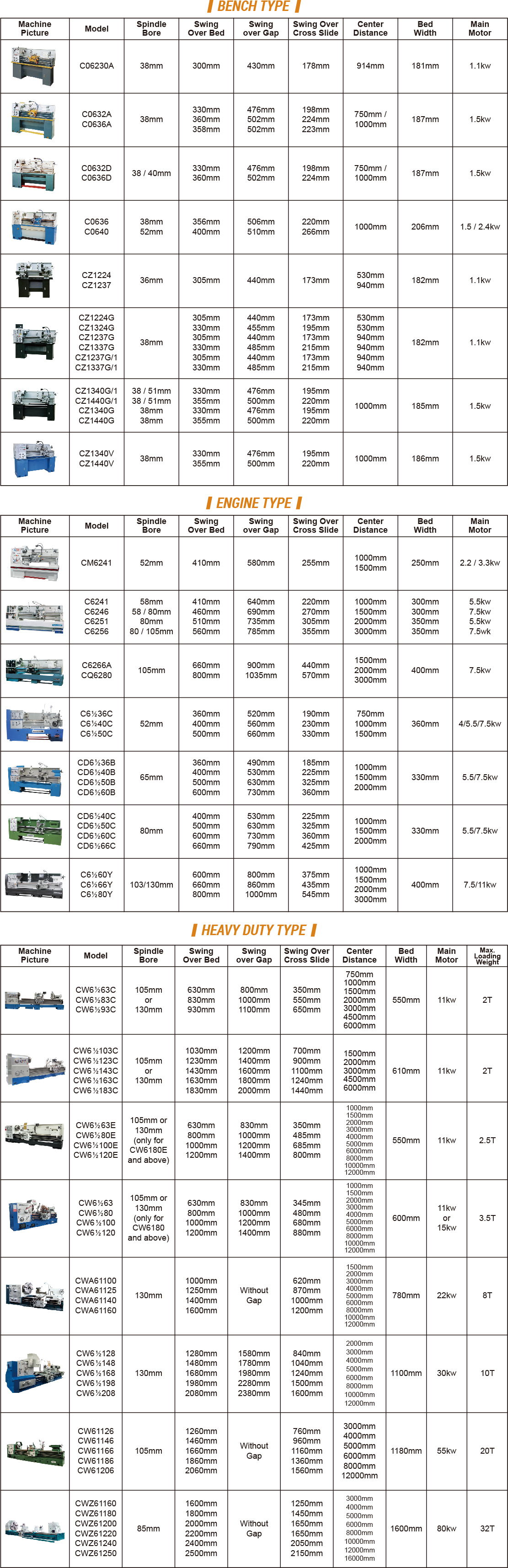

MODELS | C0632A |
Swing over bed | 330mm( 13") |
Swing over cross slide | 198mm(7-25/32") |
Swing in gap diameter | 476mm( 18-3/4") |
Swing in length | 210mm(8-1/4") |
Center height | 166mm(6-1/2") |
Center Distance | 1000mm(40 ”) |
Bed width | 187mm(7-3/8 ”) |
Bed length | 1655mm(65-1/8") |
Bed height | 290mm (11- 13/32") |
Spindle bore | 38mm(1-1/2") |
Spindle nose | D1-4 ” |
Taper in nose | MTN0.5 |
Speeds number | 8 |
Range of spindle speed | 70-2000 r/min |
Cross slide width | 130mm (5-3/32") |
Cross slide travel | 170mm(6-11/16") |
Compound rest width | 80mm(3-1/8") |
Compound rest travel | 95mm(3-9/16") |
Lead screw diameter | 22mm(7/8") |
Lead screw thread | 8T.P.I. or 3mm |
Feed rod diameter | 19mm(3/4") |
Cutting tool max section | 16mm x 16mm(5/8 ” x 5/8’‘) |
Threads imperial pitches | 34 Nos.4-56T.PJ |
Threads metric pitches | 26 Nos.0.4-7M.P |
Longitudinal feeds imperial | 32 Nos.0.002-0.548"/Rev |
Longitudinal feeds metric | 32 Nos.0.052-0.392mm/Rev |
Cross feeds imperial | 32Nos.0.007-0.0187 n /Rev) |
Cross feeds metric | 32 Nos.0.014-0.380mm/Rev |
Quill diameter | 32mm(1-1/4") |
Quill travel | 100mm(3-15/16") |
Quill taper | MTN0.3 |
Main motor | 1 -5kW(2HP) |
