Model | WLL-SRS450 |
Amount of Rollers | 1+ |
Max.Diameter of Material | Φ450 mm |
Max.Length of Work Piece | 400 mm |
Thickness of Work Piece | 0.5-2.0 mm(Aluminum,Copper) |
0.5-1.2 mm(Carbon Steel) | |
0.5-1.0 mm(Stainless Steel) | |
X Trave | 300 mm |
Z Trave | 300 mm |
Spindle Speed | 4000 rpm |
Travel of Tailstock | 300 mm |
Amount of Tools | 1+3/ Optional |
Main Motor Power | 3.7 kw Servo |
Positioning Accuracy | 0.005 |
Purpose of Machine Tool

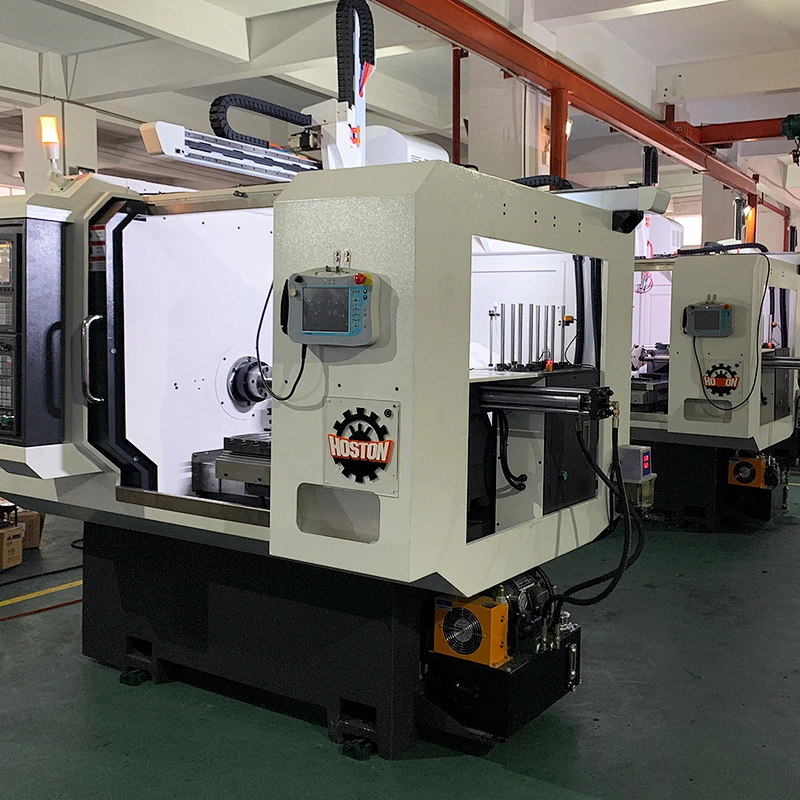

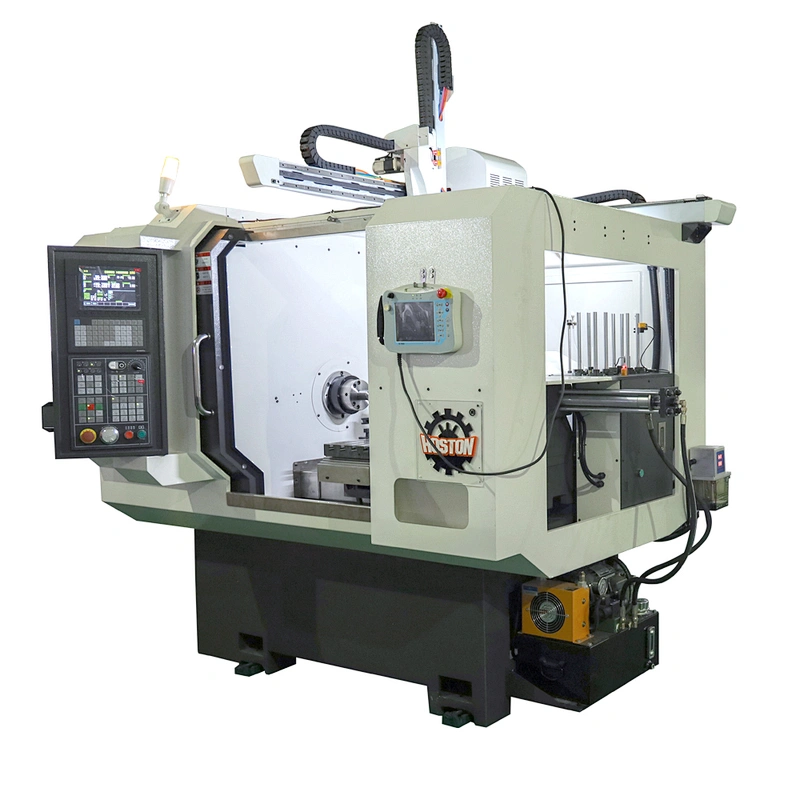

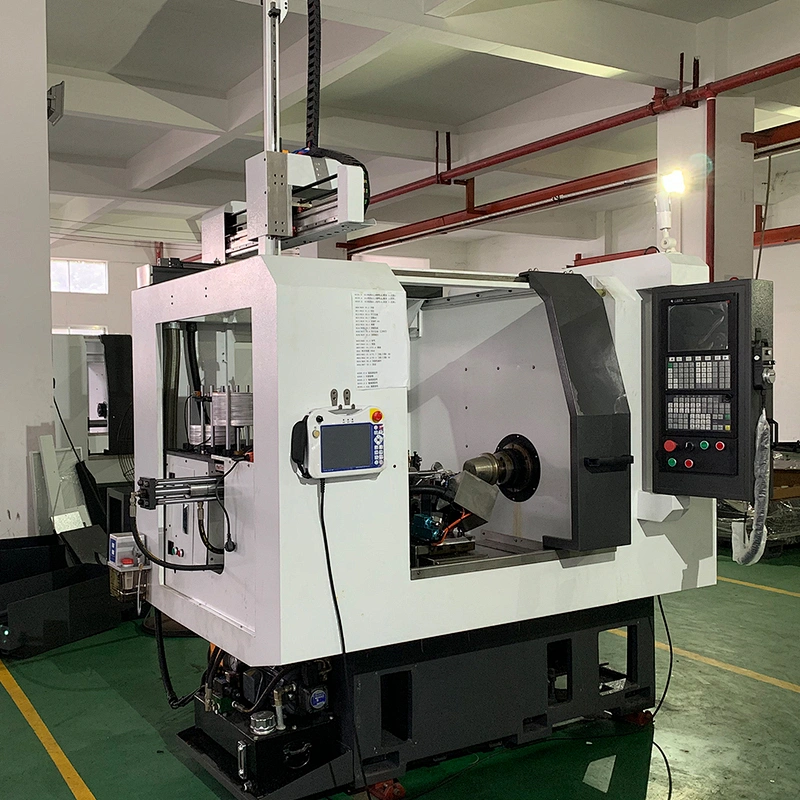

The light duty WLL series CNC spinning machine is specially developed to meet the needs of small spinning parts in mobile lighting, commercial lighting, cookware, hardware, handicrafts, air conditioners, automobiles and other industries. It could save labor costs and also affordable.

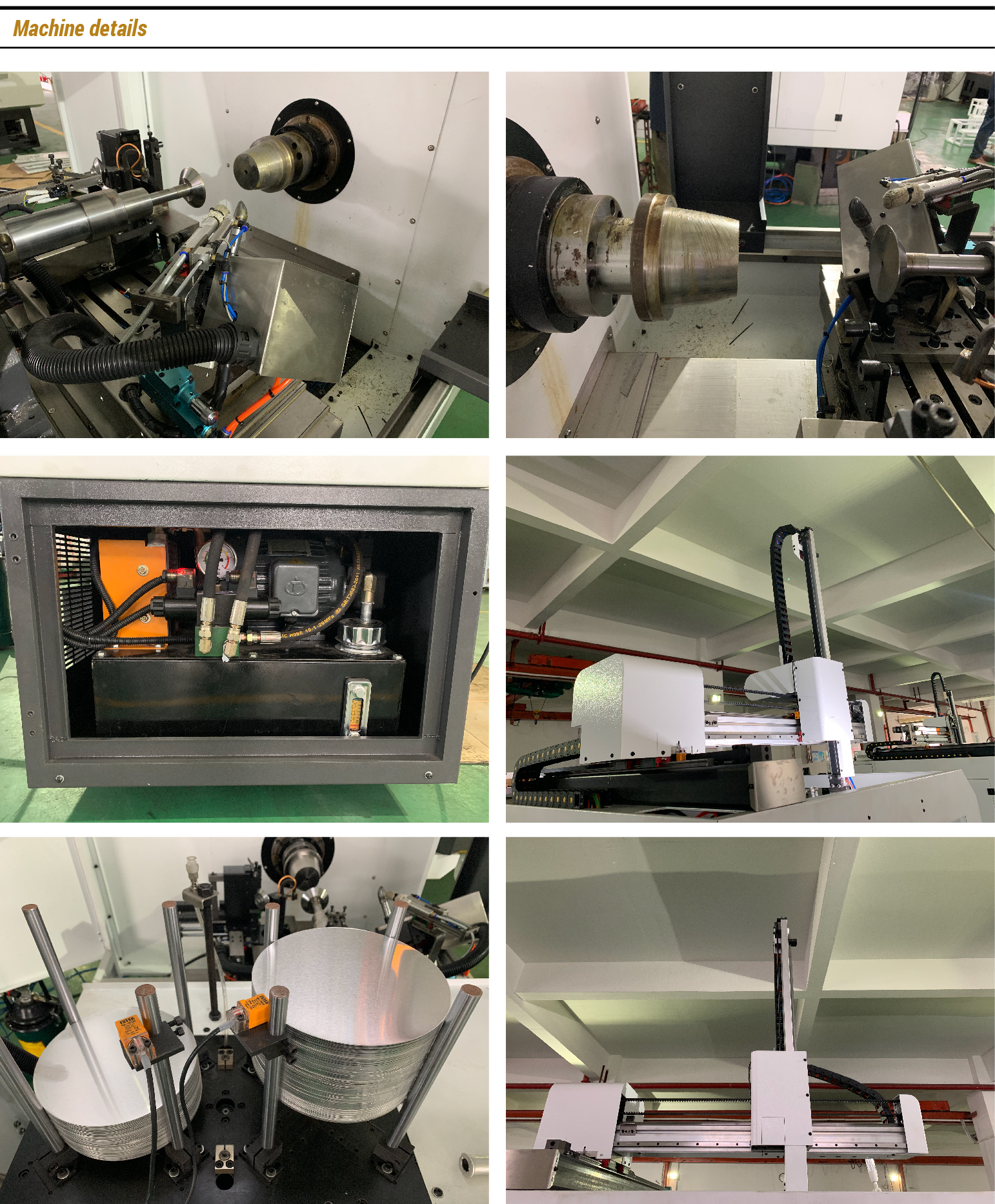

It could also be equipped with manipulator which could do the automatic loading and unloading.
The machine is very stable with mature technology and now is highly recognized by customers from all over the worlds.

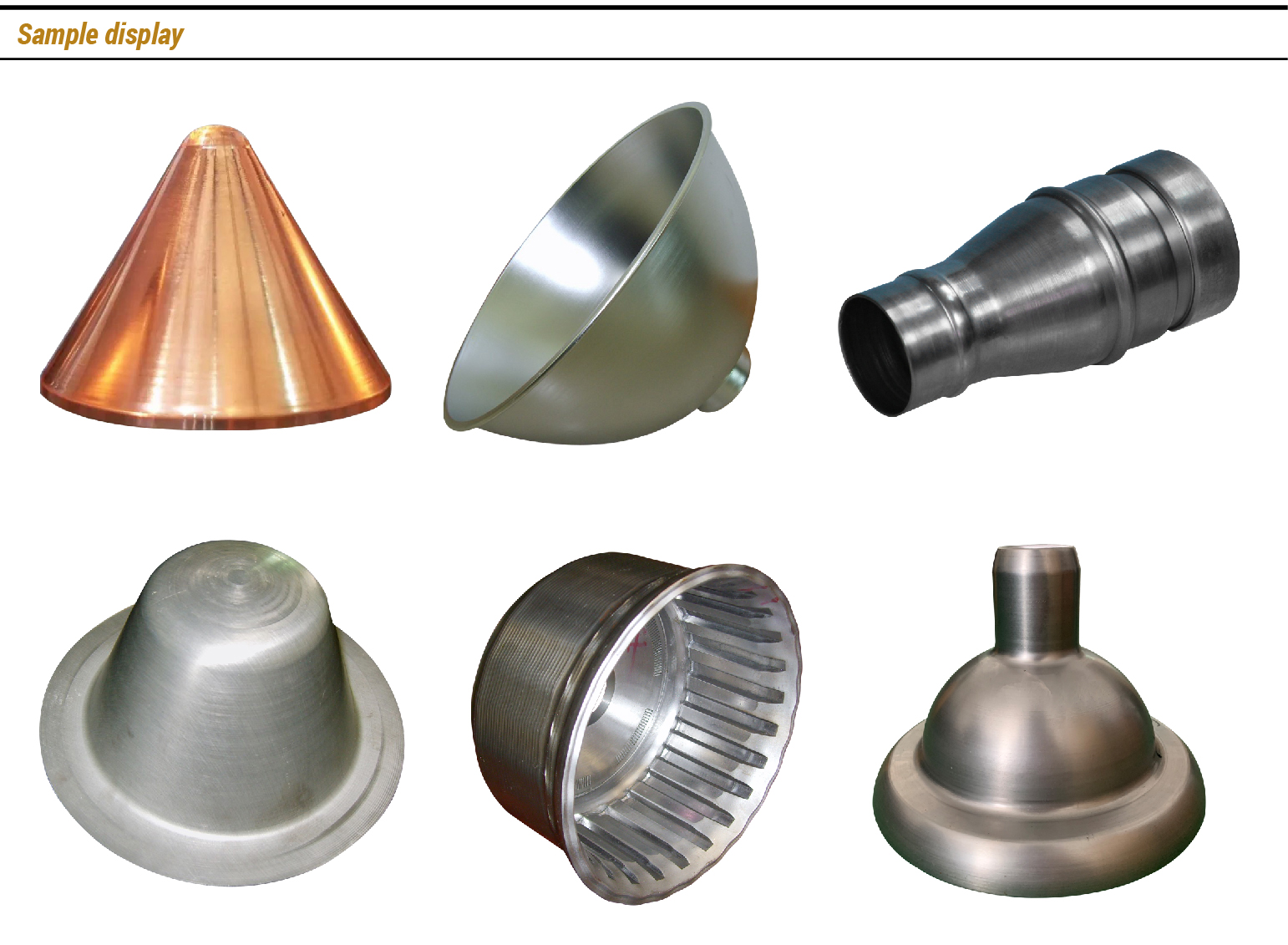

It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as carbon steel, stainless steel, aluminum and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate.
The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, military, mechanic and other manufacturing industries.
Standard Configurations & Main Features:
1 | Siemens 808D as standard CNC system which has USB port. |
2 | Meehanite cast iron after aging treatment, with high quality and less deformation. |
3 | Adopted independent spindle unit to ensure good movement precision, stiffness and stability. |
4 | Precision ball screws ensure dynamic performance well and positioning accurately. |
5 | X axis adopts integral two-way ball screw, 2 rollers move in synchronization |
6 | Feeding axles are driven by servo motors. |
7 | Spindle motor is Servo controlled. |
8 | Pneumatic tailstock. |
9 | Integrated automatic lubrication system makes the maintenance more reliable. |
10 | Configuration cooling pump. |
11 | Mobile manual pulse generator makes easy to operate. |
12 | Semi-enclosed s hield. |
Optional Accessories:
* NC system such as FANUC,SIEMENS,GSK or KND is available for your selection.
* Hydraulic tailstock.
