Model | WLH-DRS850 |
Amount of Rollers | Sync 2+ |
Max.Diameter of Material | Φ850 mm |
Max.Swing Over Slide | Φ500 mm |
Max.Length of Work Piece | 500 mm |
Thickness of Work Piece | 0.5-6.0 mm(Aluminum,Copper) |
0.5-3.0 mm(Carbon Steel) | |
0.5-2.5 mm(Stainless Steel) | |
X Trave | 230 mm |
Z Trave | 750 mm |
Spindle Speed | 2500 rpm |
Taper of Tailstock Quil | MT5 |
Travel of Tailstock | 450 mm |
Travel of Tailstock Quil | 150 mm |
Diameter of Tailstock Quil | Φ82 mm |
Amount of Tools/Shank Size | 4+1/30x30 mm² |
Spindle Motor Power | 15 kw |
Machining Accuracy | It 6 |
Overall Dimensions | 3200x2000x2000mm |
Purpose of Machine Tool

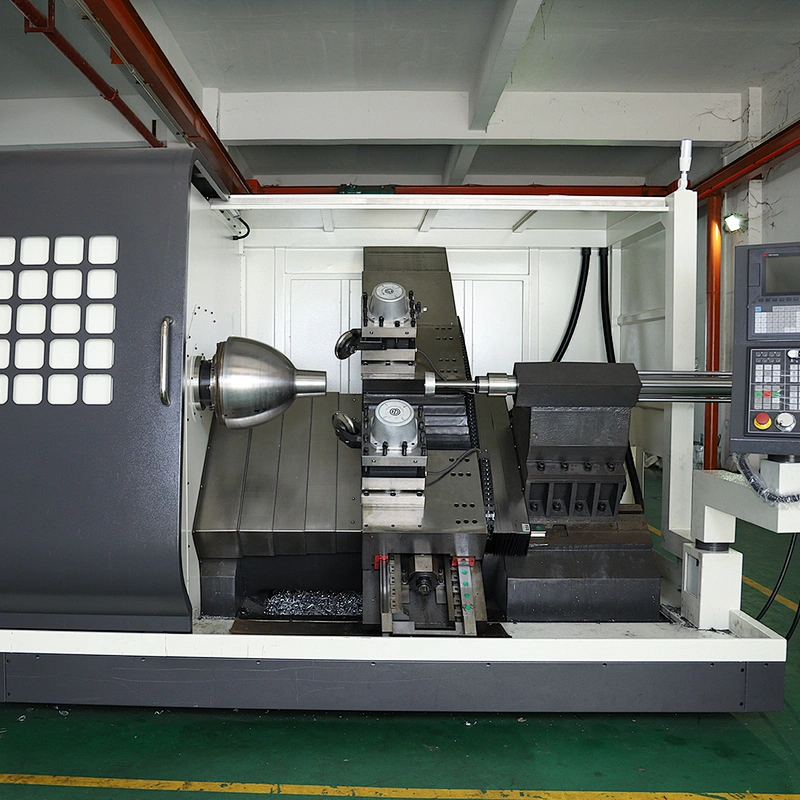

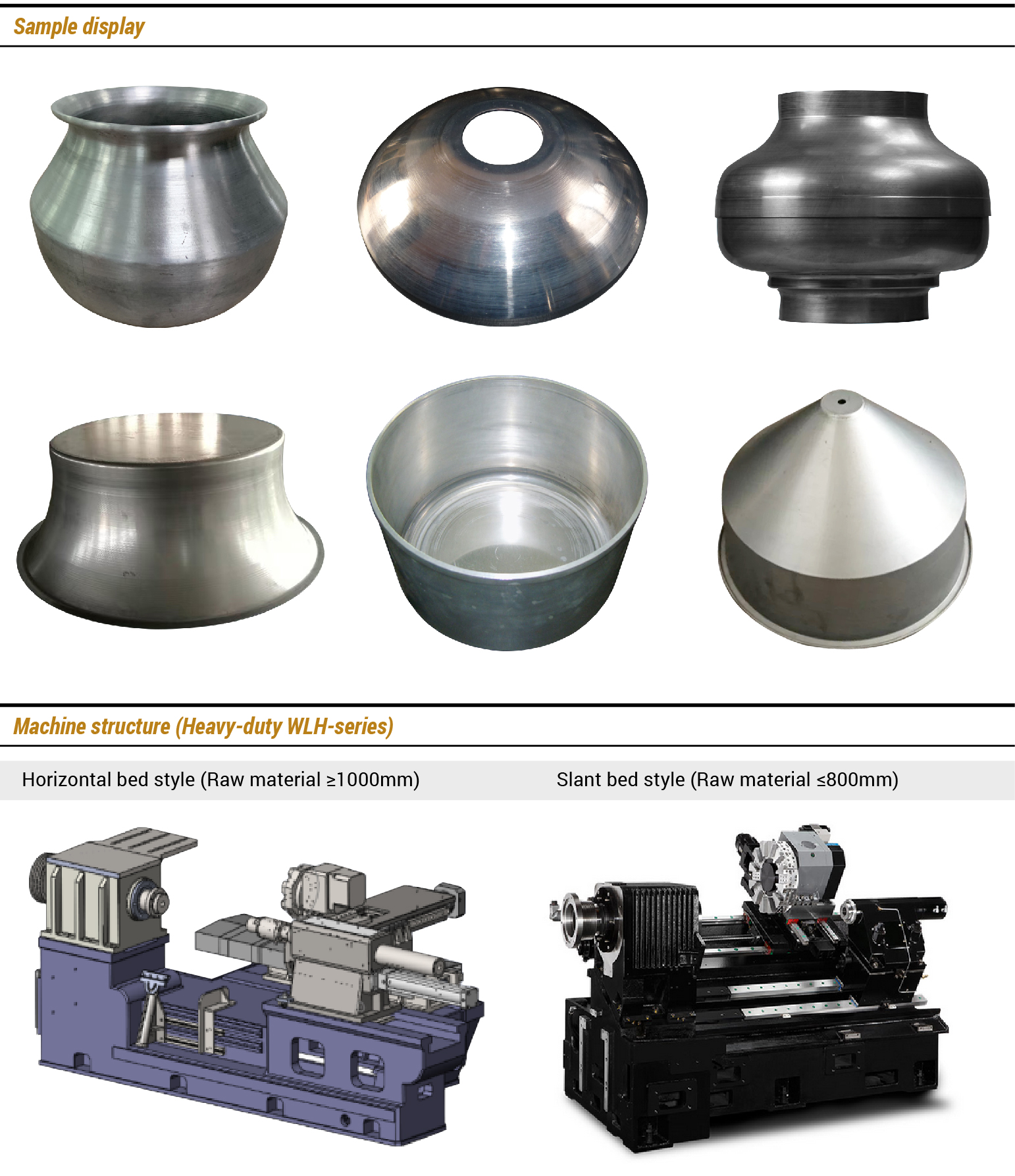

WLH-DRS series CNC Spinning and Turning Machine (Double Roller) is especially developed to spin kitchen-wares, lamps, auto fittings, ventilation and art wares. It has many patents issued by the State Intellectual Property Office. This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products.
It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as carbon steel, stainless steel, aluminum and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate.
The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, military, mechanic and other manufacturing industries.
Standard Configurations & Main Features:

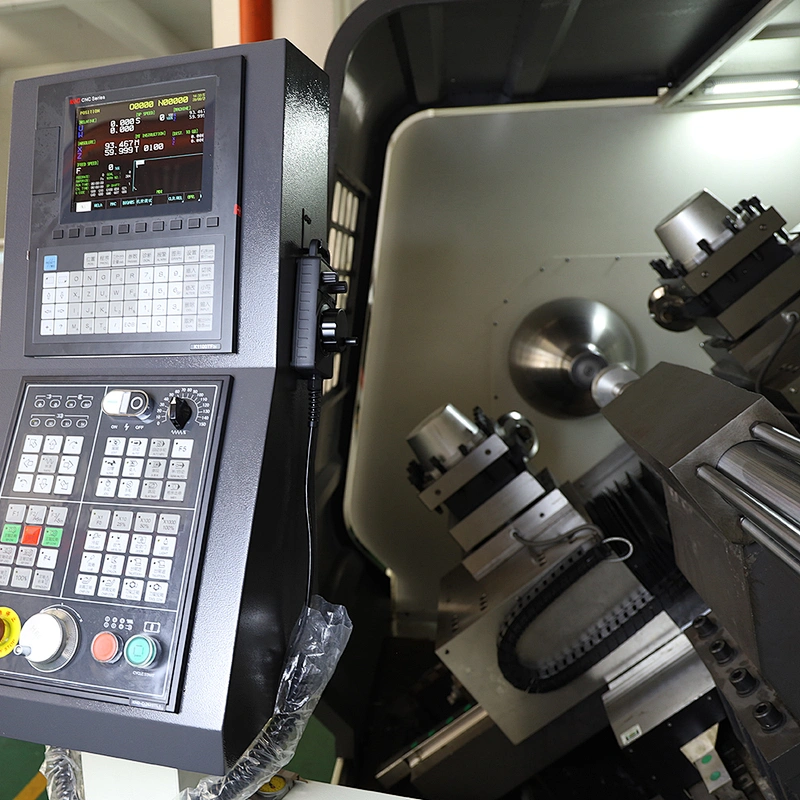

1 | Siemens 808D as standard CNC system which has USB port. |
2 | Meehanite cast iron after aging treatment, with high quality and less deformation. |
3 | Adopted independent spindle unit to ensure good movement precision, stiffness and stability. |
4 | Precision ball screws ensure dynamic performance well and positioning accurately. |
5 | X axis adopts integral two-way ball screw, 2 rollers move in synchronization |
6 | Feeding axles are driven by servo motors. |
7 | Spindle motor is Servo controlled. |
8 | Pneumatic tailstock. |
9 | Integrated automatic lubrication system makes the maintenance more reliable. |
10 | Configuration cooling pump. |
11 | Mobile manual pulse generator makes easy to operate. |
12 | Semi-enclosed s hield. |
