Product Features:
● Precision ground and hardened bed ways.
● The spindle is supported with precision roller bearings.
● Head stock gears are made of high quality steel ground and hardened.
● Easy operating speed change levers.
● Removable gap is provided for larger diameter work.
● Easy operating gear box has various feed sand thread cutting function.
Standard Accessories:
● Reduction sleeves ● Centers ● Three jaw chuck ● Changing gears ● Tool box and tools 1 set
Special Accessories:
● Four jaw chuck ● Face plate ● Steady rest ● Follow rest ● Live center ● Bed base ● Work light ● Foot brake ● Coolant

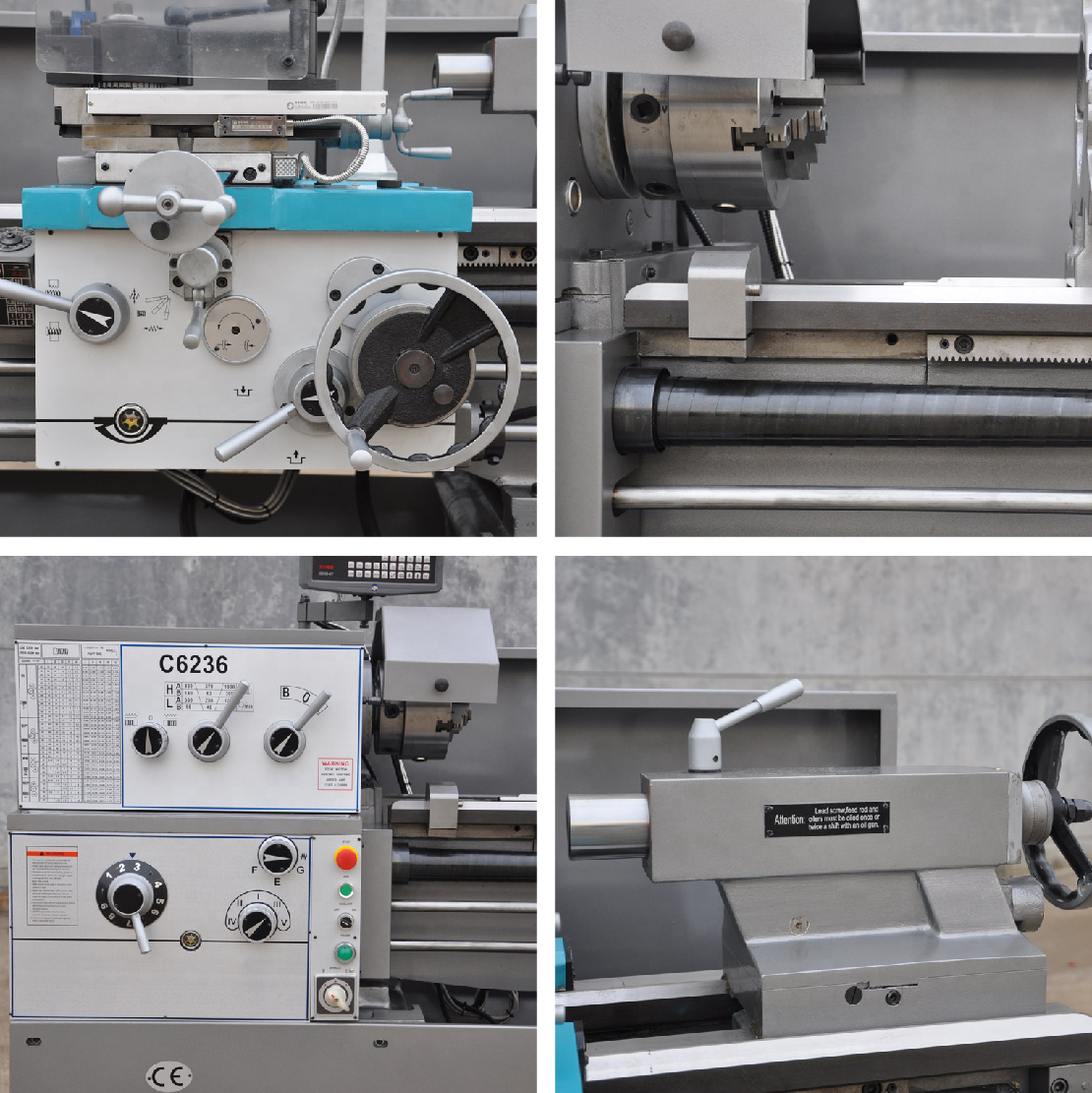

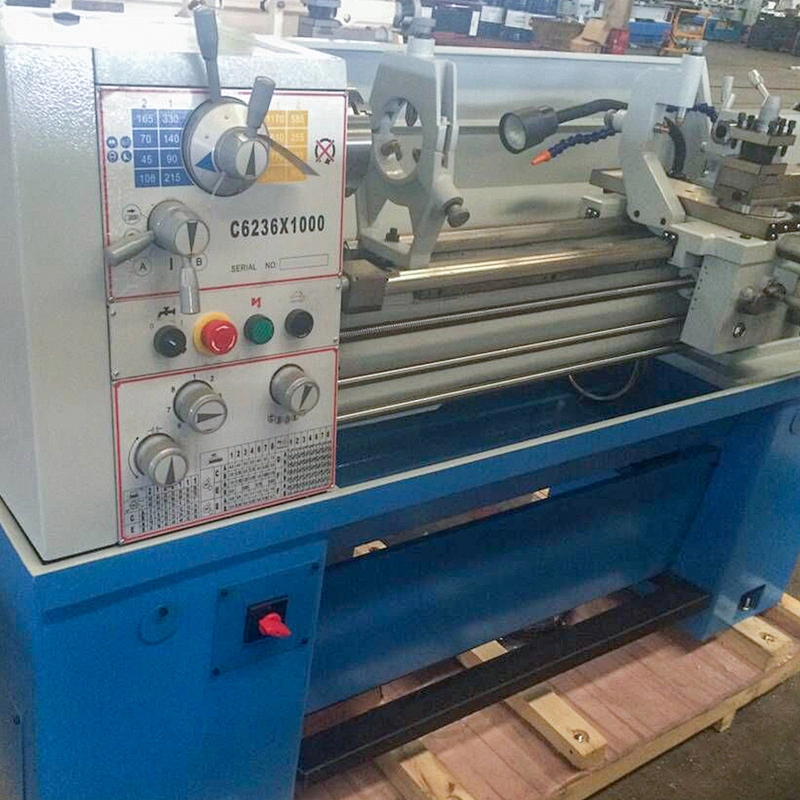

Specification | C6236 |
Swing over bed | 356mm(14’’) |
Swing over cross slide | 220mm(8-5/8") |
Swing in gap diameter | 506mm(20’’) |
Valid length of gap | 145mm(5-11/16") |
Admits between | 1000mm(40") |
Width of bed | 206mm(8") |
Spindle nose | D1-4 |
Spindle bore | 38mm(1-1/2") |
Taper of spindle bore | MT No.5 |
Range of spindle speed | 16 changes 45~1800r/min |
Compound rest travel | 95mm(3-3/4”) |
Cross slide travel | 180mm(7’’) |
Max. section of tool | 16mmx l6mm(5/8’’x5/8’’) |
Lead screw thread | 8T.P.I. or 4mm |
Longitudinal feeds range | 0.0012"~0.0294"/rev (Inch lathe) or 0.043-0.653mm/rev ( Metric lathe) |
Cross feeds range | 0.0004"~0.017rev (Inch lathe) or 0.027-0.413mm/rev ( Metric lathe) |
Threads metric pitches | 0.45～7.5mm (Inch lathe) or 0.4～7mm (Metric lathe) |
Threads inch pitches | 4~112T.P.I. (Inch lathe) or 4-56T.P.I. (Metric lathe) |
Quill diameter | 45mm(1-3/4") |
Quill travel | 120mm(4-3/4") |
Quill taper | MTNo.3 |
Main motor power (double speeds) | 1.5/2.4kW(2/3HP) |
Coolant pump power | 0.04kW |
Overall dimension (L x w x h) | 182 x 74 x 125cm |
Packing size (L x w x h) | 193 x 76 x 158cm |
Net weight | 730kg |
Gross weight | 860kg |
