Product Features:
■ Bed rail grinding, high precision.
■ Headstock gear precision grinding low noise.
■ Electric system is reliable and safe.
■ Foot brake / electro magnetic brake can be amounted when needed, and color at user’s option.
■ Carriage optional： left hand, right hand.
■ Big slide can be: common, fast forward or tapered structure.
■ Three bars can be Metric or British system.
■ Customizable C6160C/C6260C
Standard Accessories:
■ Reduction sleeves ■ Centers ■ Three jaw chuck ■ Changing gears ■ Tool box and tools 1 set
Special Accessories:

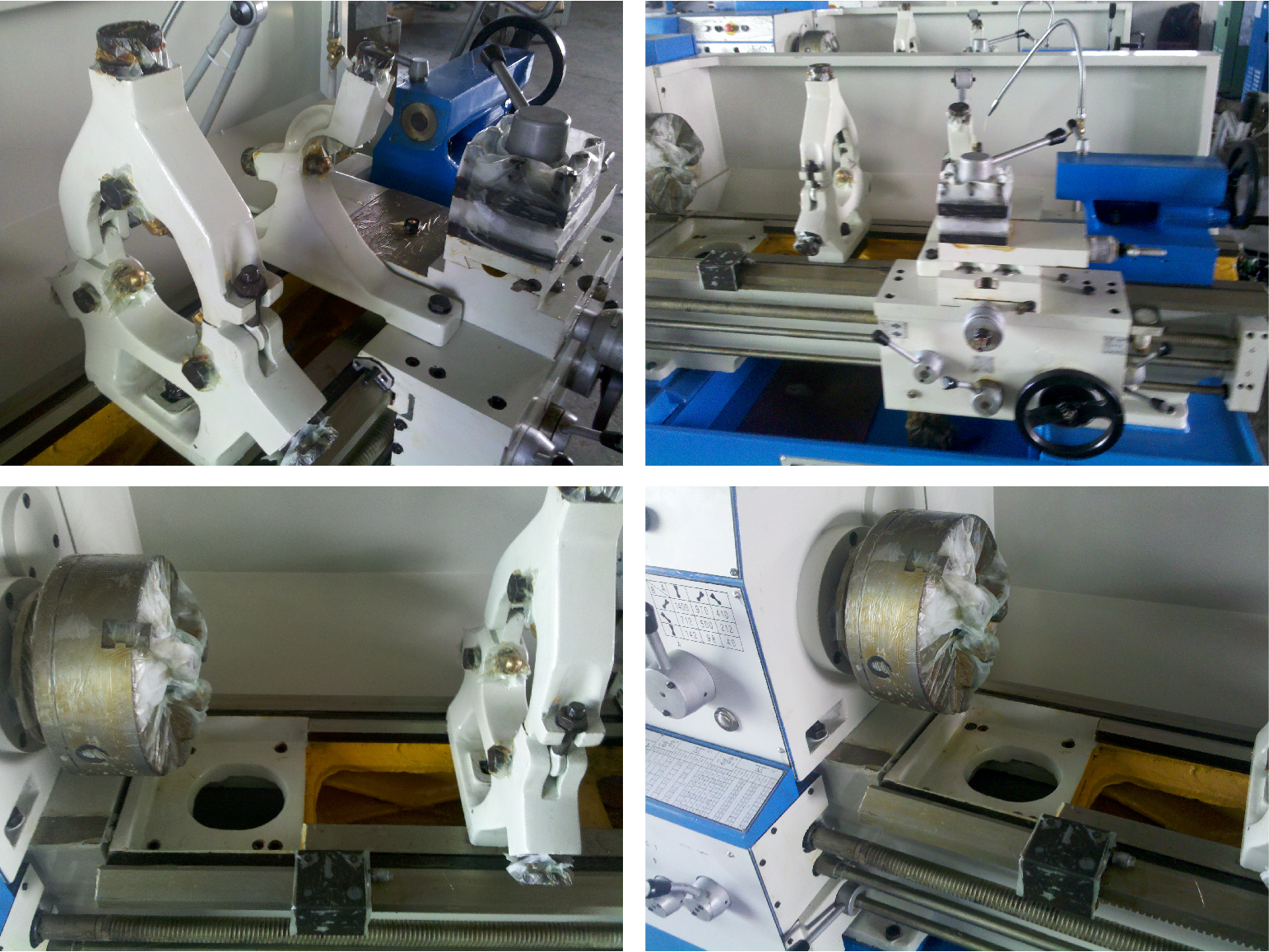

■ Four jaw chuck ■ Face plate ■ Steady rest ■ Follow rest ■ Live center ■ Bed base ■ Work light ■ Foot brake ■ Coolant

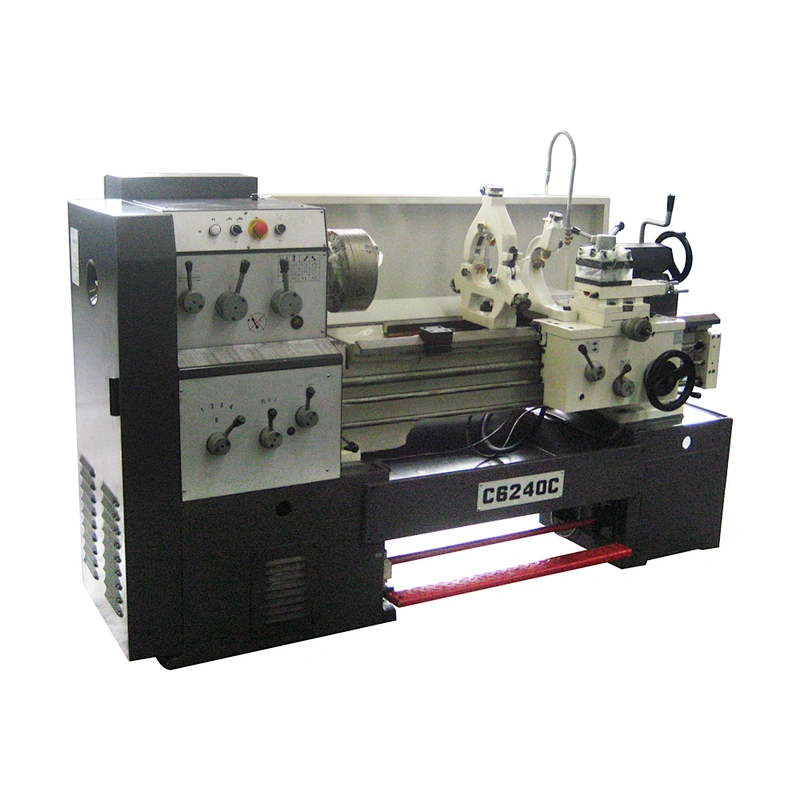

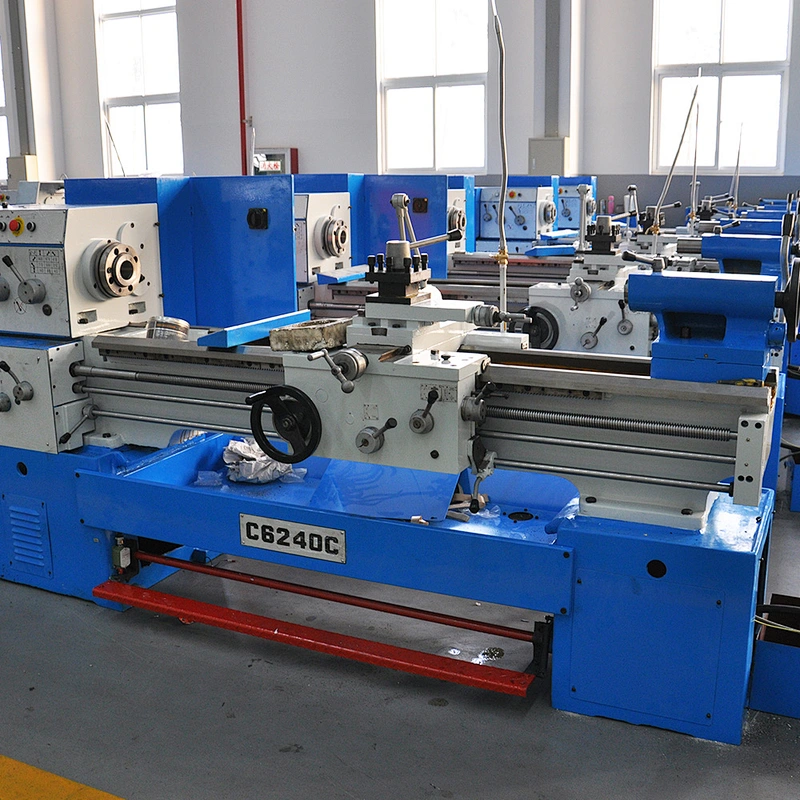

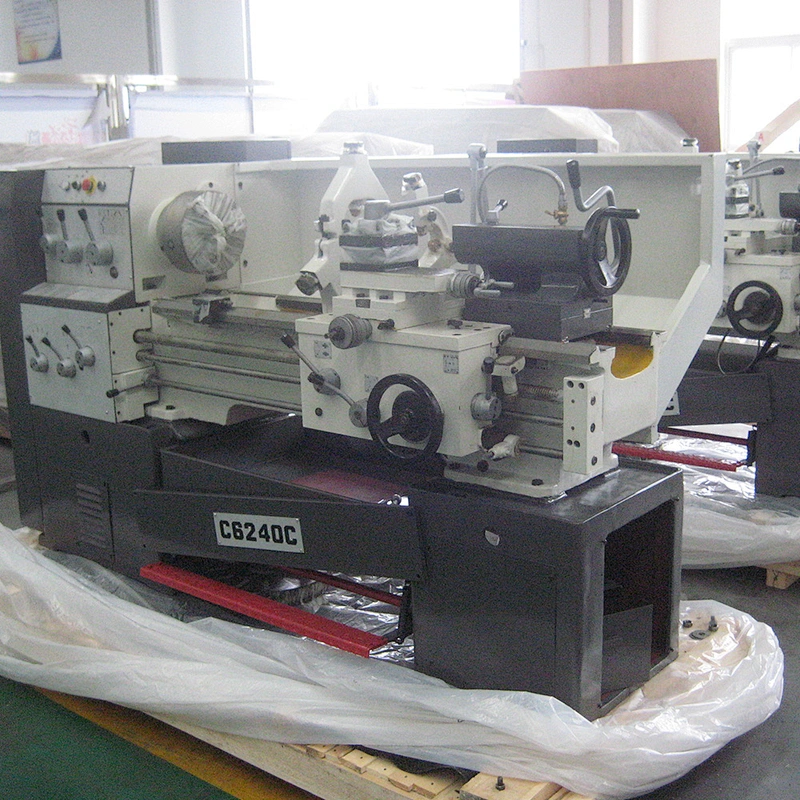

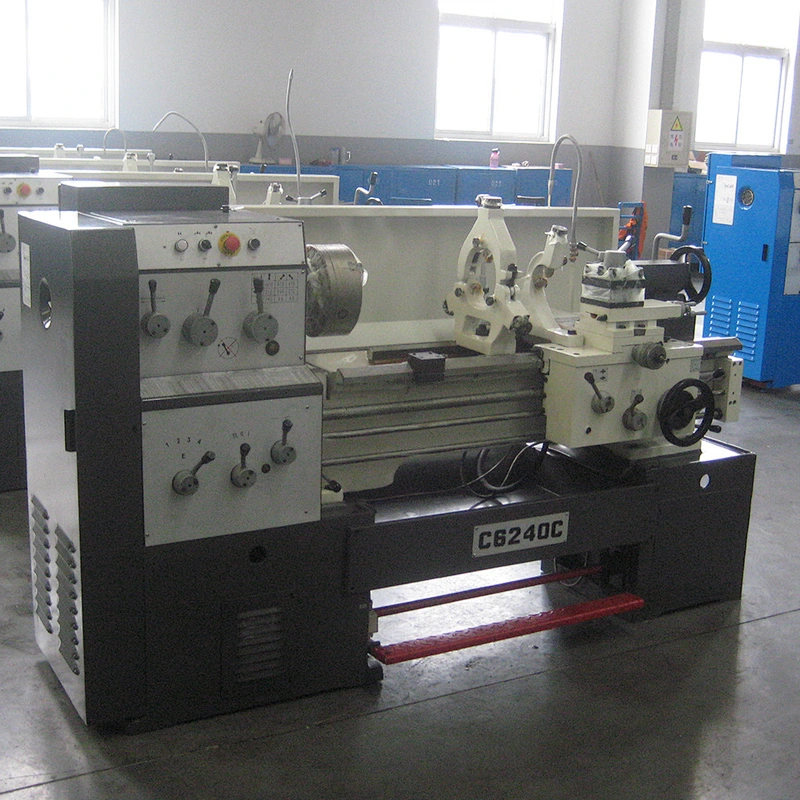

MODEL | C6240C |
Max swing over bed | 400mm |
Max swing over slide | 230mm |
Workpiece cutting length | 750mm, 1000mm, 1500mm, 2000mm. 3000mm |
Max swing over gap | 560mm |
Effective length of gap | 160mm |
Bed width | 360mm |
Spindle hole | ɸ52mm /ɸ 82mm |
Spindle nose | IS0-C6 or IS0-C8 |
Spindle taper | MT6 / 1:20 |
Spindle speeds (number) | 42-1600 rpm (12 steps) |
Metric threads range (kinds) | 0. 25- 14mm (24 kinds) |
Inch threads range (kinds) | 2-40inch (27 kinds) |
Module threads range (kinds) | 0.25-3. 5mπ (16 kinds) |
Cross slide travel | 220mm |
Compound rest travel | 120mm |
Cross-section size of tool shank | 20mm X 20mm |
Taper of tailstock sleeve | MT4 / MT5 |
Diameter of tailstock sleeve | 65mm / 75mm |
Travel of tailstock sleeve | 130mm |
Main motor power | 4. 0kw or 5. 5kw or 7. 5kw |
Cooling bump motor | 0.125kw |
Rapid motor | 0.12kw |
