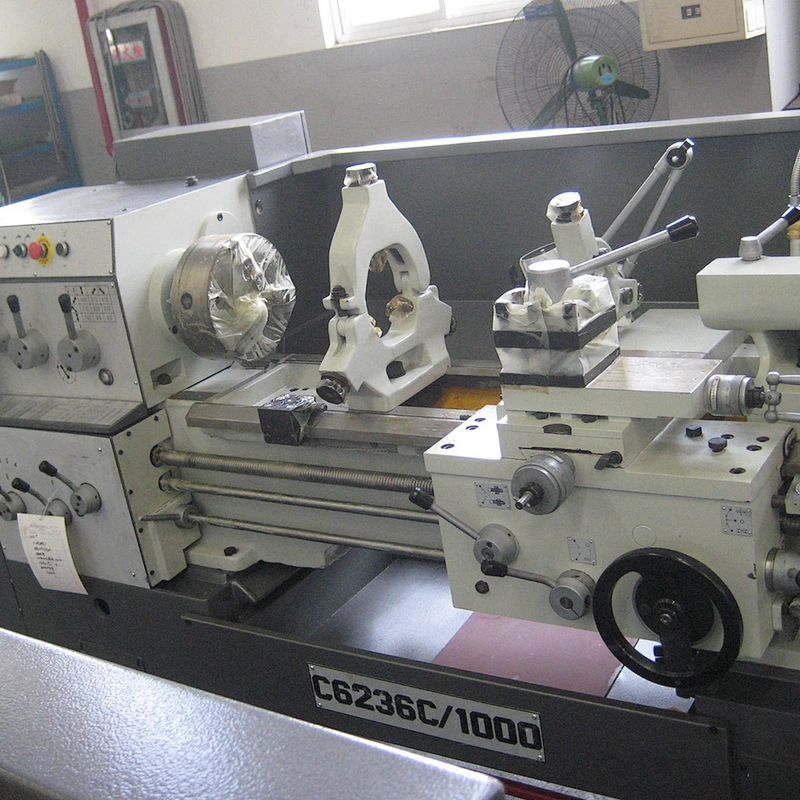

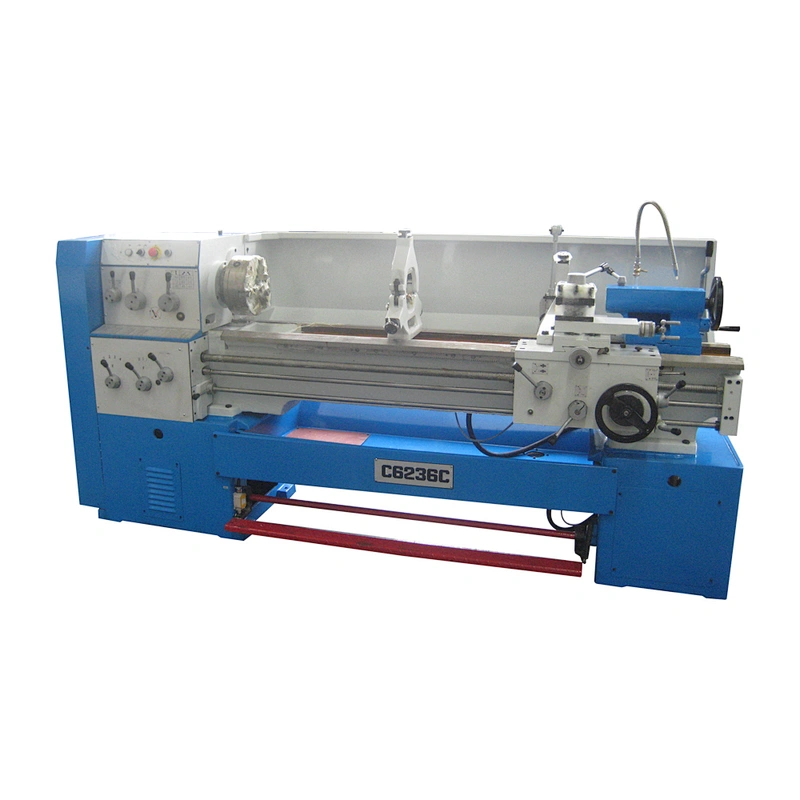

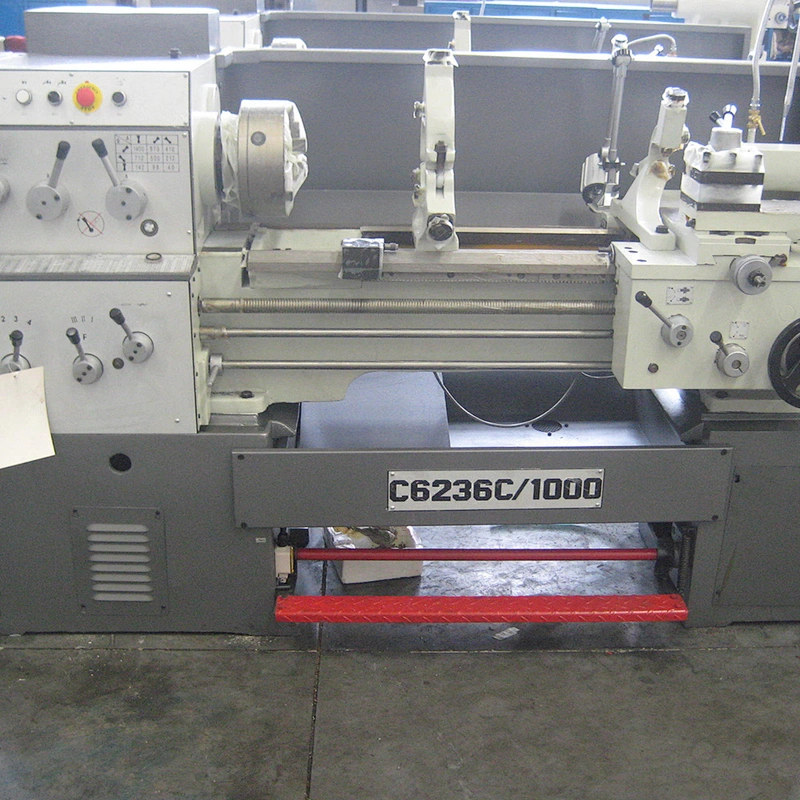

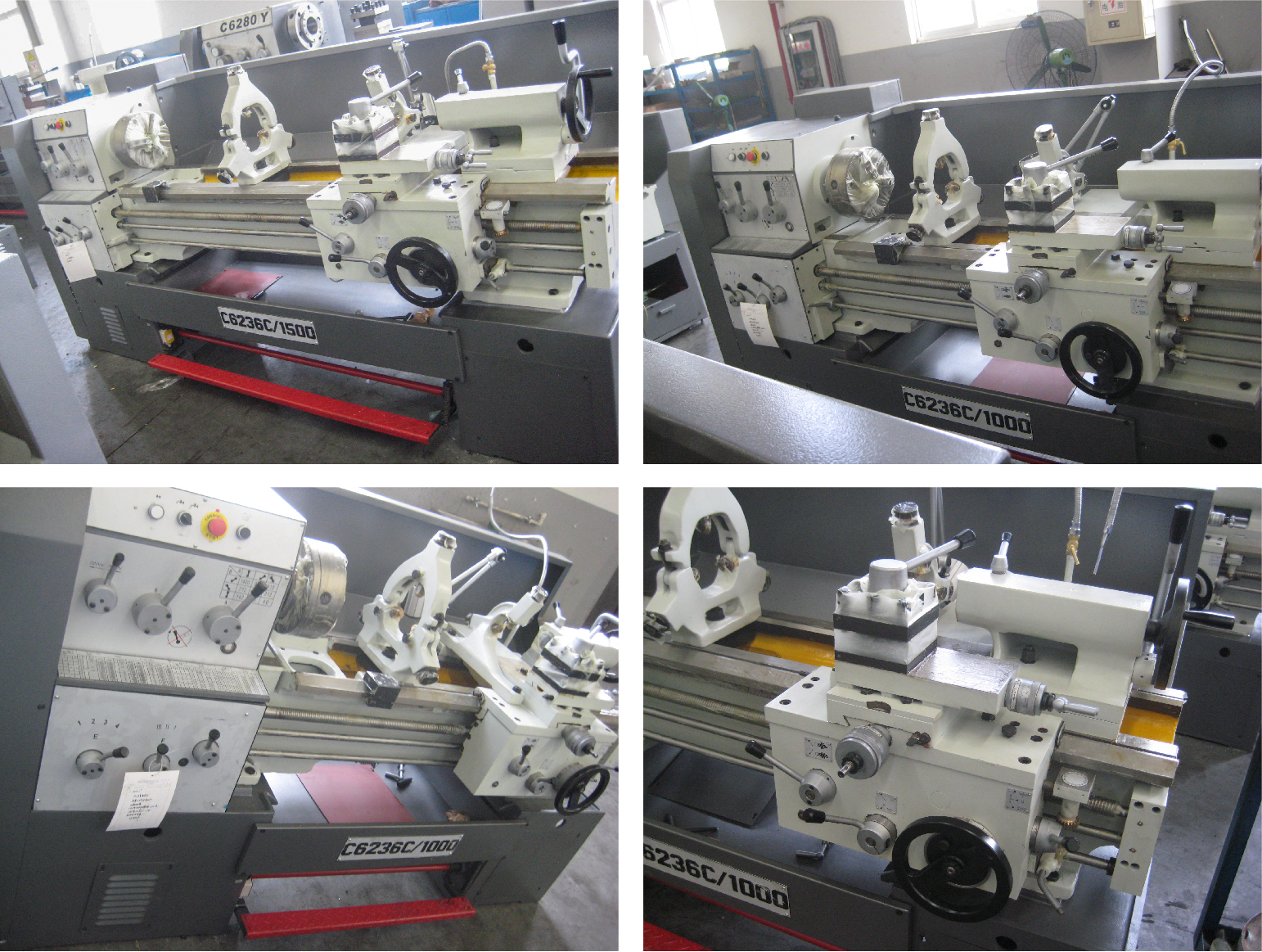

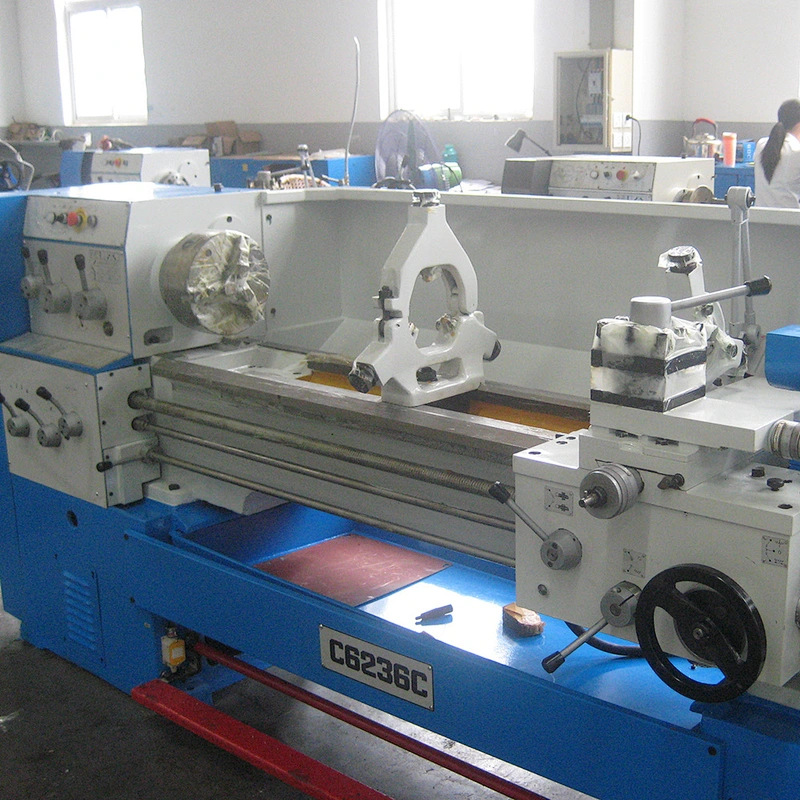

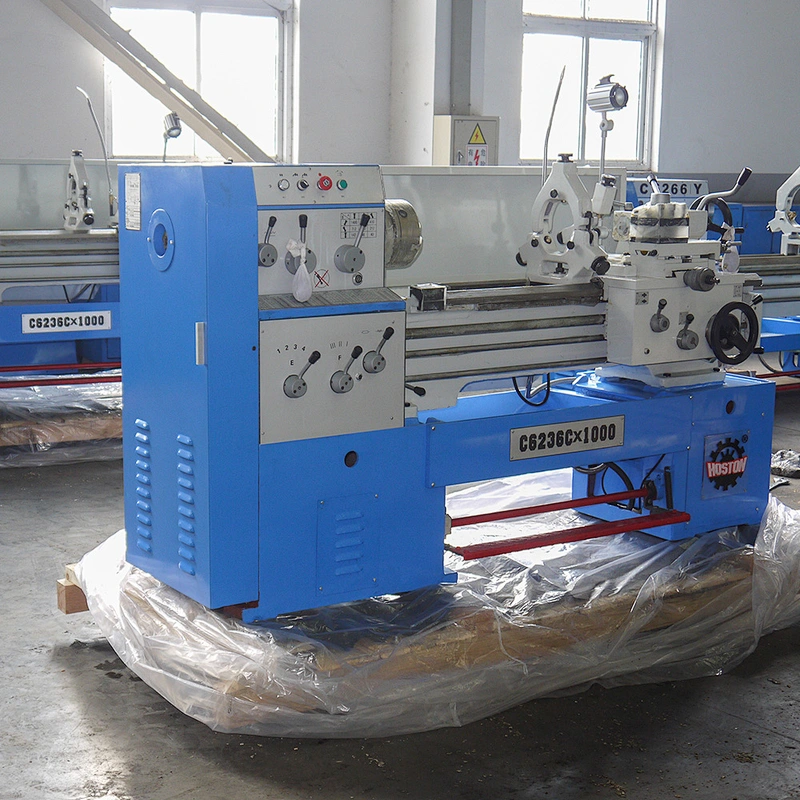

Product Features:
■ Bed rail grinding, high precision.
■ Headstock gear precision grinding low noise.
■ Electric system is reliable and safe.
■ Foot brake / electro magnetic brake can be amounted when needed, and color at user’s option.
■ Carriage optional： left hand, right hand.
■ Big slide can be: common, fast forward or tapered structure.
■ Three bars can be Metric or British system.
■ Customizable C6160C/C6260C
Standard Accessories:
■ Reduction sleeves ■ Centers ■ Three jaw chuck ■ Changing gears ■ Tool box and tools 1 set
Special Accessories:
■ Four jaw chuck ■ Face plate ■ Steady rest ■ Follow rest ■ Live center ■ Bed base ■ Work light ■ Foot brake ■ Coolant
Specification | C6266A |
Swing over bed | 660mm (26”) |
Swing over cross slide | 440mm (17-5/16’‘) |
Swing in gap diameter | 900mm (35-7/16’‘) |
Distance between centers | 1500mm(60”) 2000mm(80’’) 3000mm(120”) |
Valid length of gap | 250mm(10”) |
Width of bed | 400mm(15-13/16”) |
Spindle nose | D1-8 |
Spindle bore | 105mm(4-1/8”) |
Taper of spindle bore | Φ 113(1:20) |
Range of spindle speed | 25 〜1600 r/min |
Compound rest travel | 230mm(9-1/8”) |
Cross slide travel | 368mm(14-1/2”) |
Max. section of tool | 25x25mm(1” x1”) |
Lead screw thread | 12mm or 2T.P.I |
Longitudinal feeds range | 0.044 〜1.48mm/rev (0.00165” 〜0.0550”/rev) |
Cross feeds range | 0.022 〜0.74mm/rev (0.00083” ~ 0.02774”/rev) |
Threads metric pitches | 54 kinds, 0.45 〜120mm |
Threads imperial pitches | 54kinds, 7/16～80 T.P.I. |
Threads diametral pitches | 42kinds, 7/8～160DP |
Threads module pitches | 46 kinds, 0.25 ～60MP |
Quill diameter | 90mm(3-1/2”) |
Quill travel | 235mm(9-1/4”) |
Quill taper | No.5 Morse |
Main motor power | 7.5kW(10HP)3PH |
Coolant pump power | 0.1kW(1/8HP) 3PH |
Overall dimension(Lx WxH) | 321 xi23x160cm 371x123x160cm 471x123x160cm |
Packing size(LxWxH) | 324x114x184cm 374x114x184cm 474x114x184cm |
Net weight | 3065kg 3345kg 3710kg |
Gross weight | 3535kg 3835kg 4310kg |
