Product Features:
■ Precision ground and hardened bedways.
■ Head stock gears are made of high quality steel ground and hardened.
■ Removable gap is provided for larger diameter work.
■ Easy operating gear box has various feeds and thread cutting function.
■ The spindle is supported with precision roller bearings.

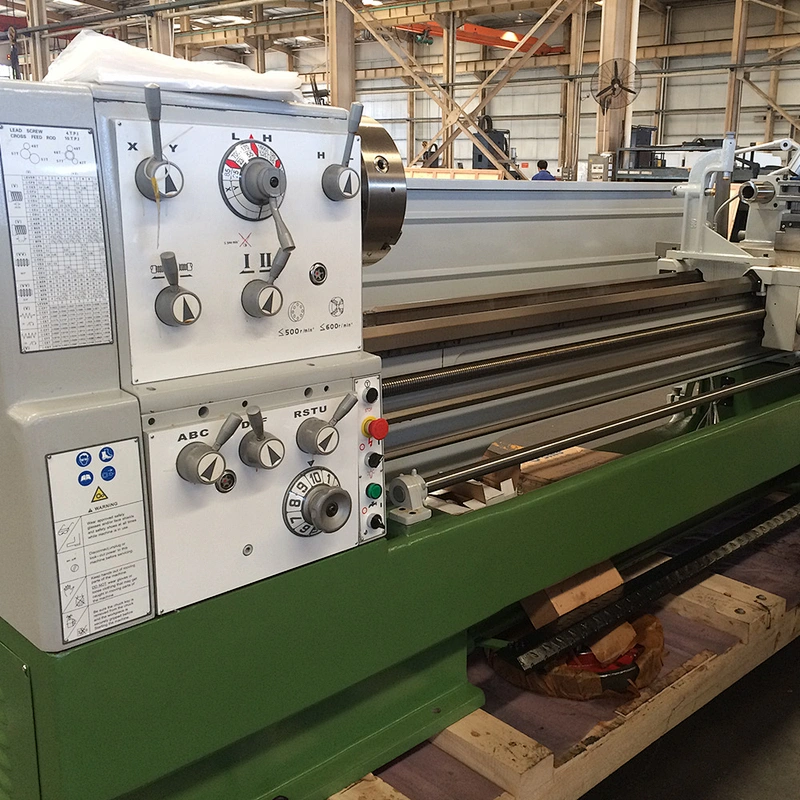

■ Easy operating speed change levers.
■ Whole or segregate foot stand for optional.
Standard Accessories:
■ Reduction sleeves ■ Centers ■ Three jaw chuck ■ Changing gears ■ Tool box and tools 1 set
Special Accessories:
■ Four jaw chuck ■ Face plate ■ Steady rest ■ Follow rest ■ Live center ■ Bed base ■ Work light ■ Foot brake ■ Coolant

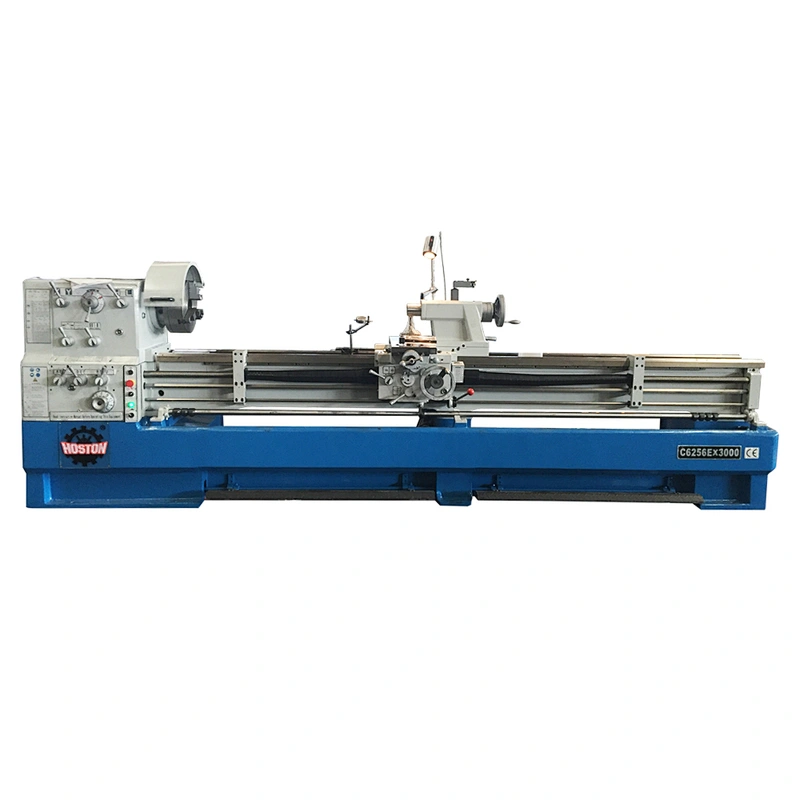

Specification | C6256 |
Swing over bed | 560mm(22”) |
Swing over cross slide | 355mm (14’‘) |
Swing in gap diameter | 785mm (30-7/8”) |
Distance between centers | 1000mm(40”) 1500mm(60”) 2000mm(80”) 3000mm(120”) |
Valid length of gap | 170mm(6-11/16”) |
Width of bed | 350mm(13-13/16n) |
Spindle nose | D1-8 |
Spindle bore | 80mm(3-1/8”) |
Taper of spindle bore | No.7 Morse |
Range of spindle speed | 12 changes, 25 〜2000r/min |
Compound rest travel | 130mm(5-1/8”) |
Cross slide travel | 316mm(12-7/16”) |
Max. section of tool | 25x25mm(1” x1’’) |
Lead screw thread | 6mm or 4T.P.I. |
Longitudinal feeds range | 35kinds, 0.059 ~ 1.646mm/rev (0.0022” 〜0.0612”/rev) |
Cross feeds range | 42 kinds, 0.020 〜0.573mm/rev (0.00048” 〜0.01354”/rev) |
Threads metric pitches | 47 kinds, 0.2 〜14mm |
Threads imperial pitches | 60kinds，2 〜112T.P.I. |
Threads diametral pitches | 50kinds,4 〜112DP |
Threads module pitches | 34 kinds, 0.1 〜7MP |
Quill diameter | 75mm(2-15/16”) |
Quill travel | 180mm(7-1/16”) |
Quill taper | No.5 Morse |
Main motor power | 7.5kW(10HP)3PH |
Coolant pump power | 0.1kW(1/8HP)3PH |
Overall dimension(LxWxH) | 239x115x146cm 284x115x146cm 334x115x146cm 434x115x146cm |
Packing size(LxWx H) | 245x119x174cm 290x119x174cm 340x119x174cm 440x119x174cm |
Net weight | 2195kg 2285kg 2560kg 2930kg |
Gross weight | 2600kg 2690kg 2980kg 3410kq |
