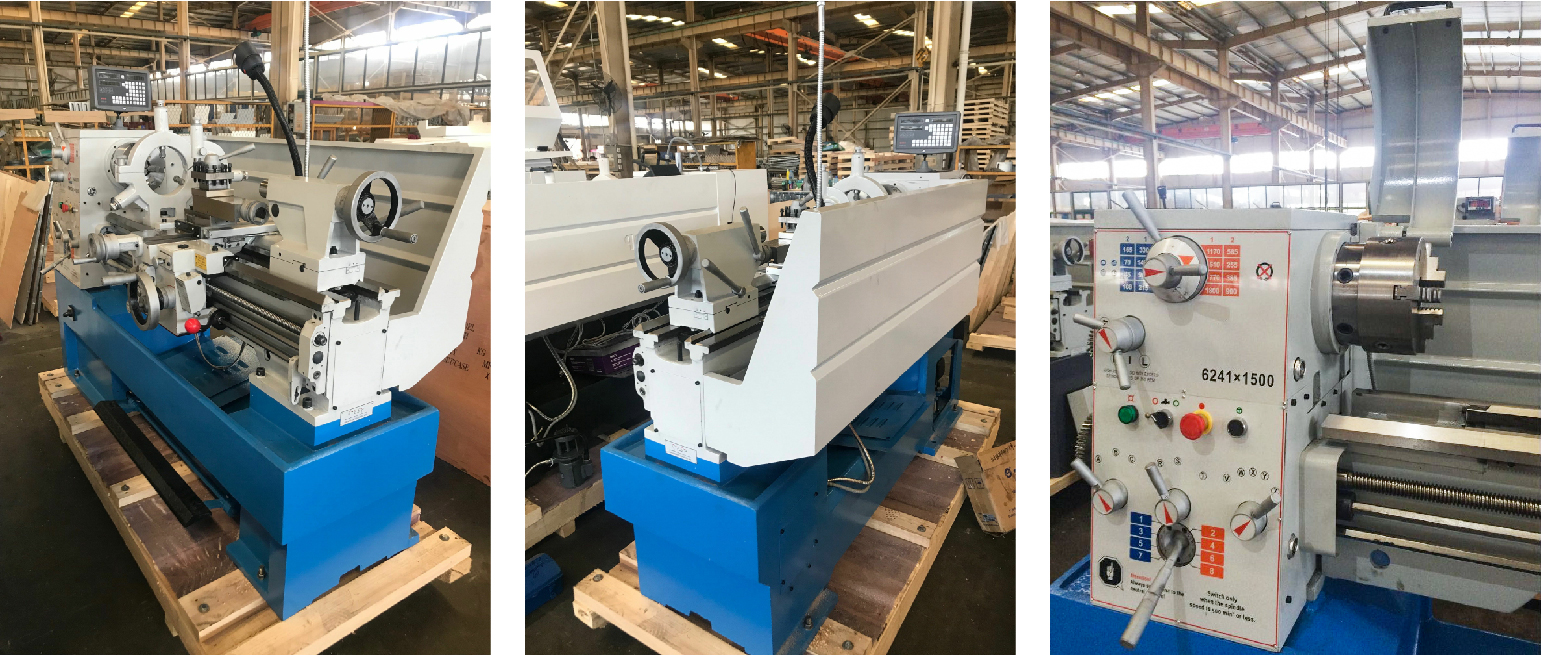

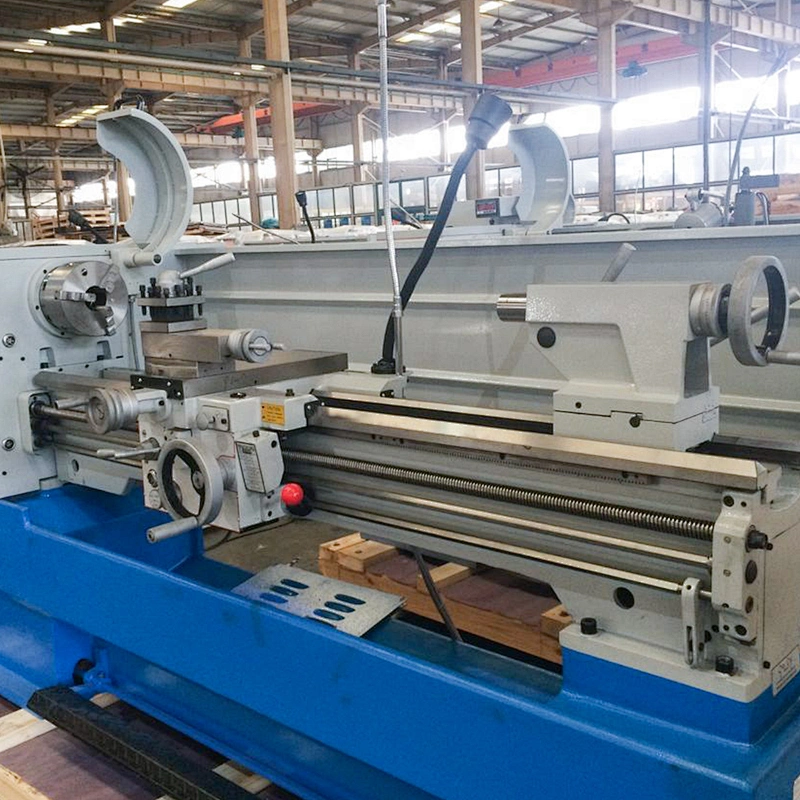

Product Features:
● Super voice frequency heated bed ways.

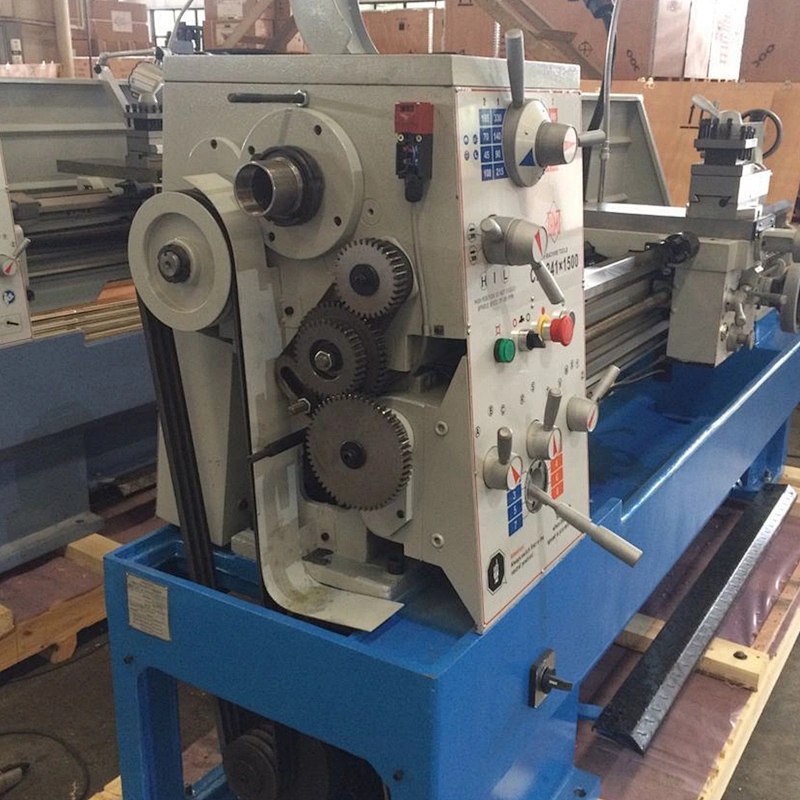

● Hardened and grounded gears in the headstock.
● With 2 precision D degree taper roller bearings on the spindle.
● Integrated deluxe cast iron floor stand.
● Tolerance test certificate, test flow chart included.
Standard Accessories:
● Reduction sleeves ● Centers ● Three jaw chuck ● Changing gears ● Tool box and tools 1 set
Special Accessories:
● Four jaw chuck ● Face plate ● Steady rest ● Follow rest ● Live center ● Bed base ● Work light ● Foot brake ● Coolant
Specification | Model | ||

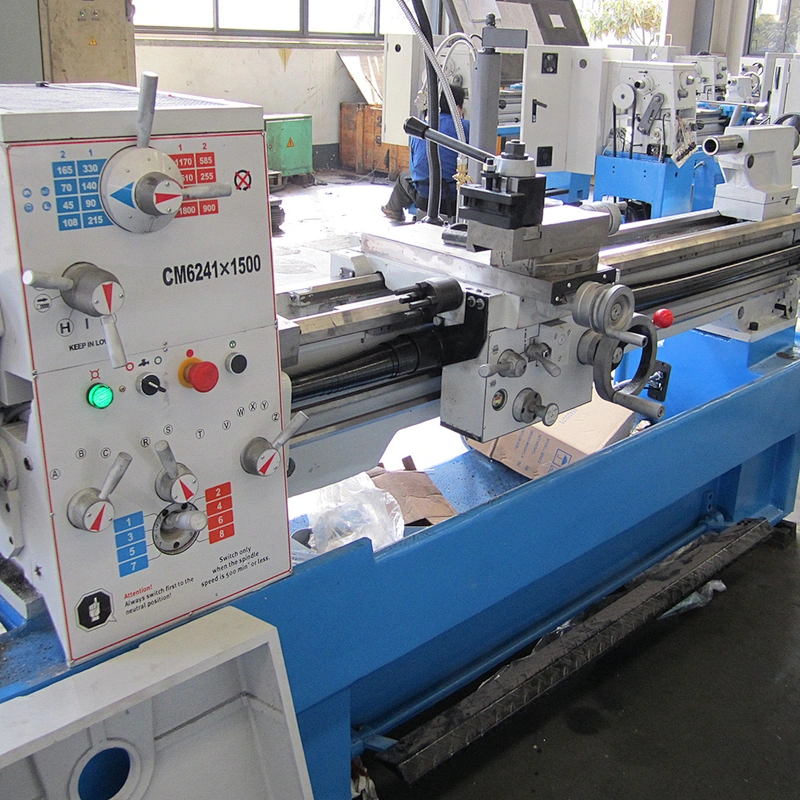

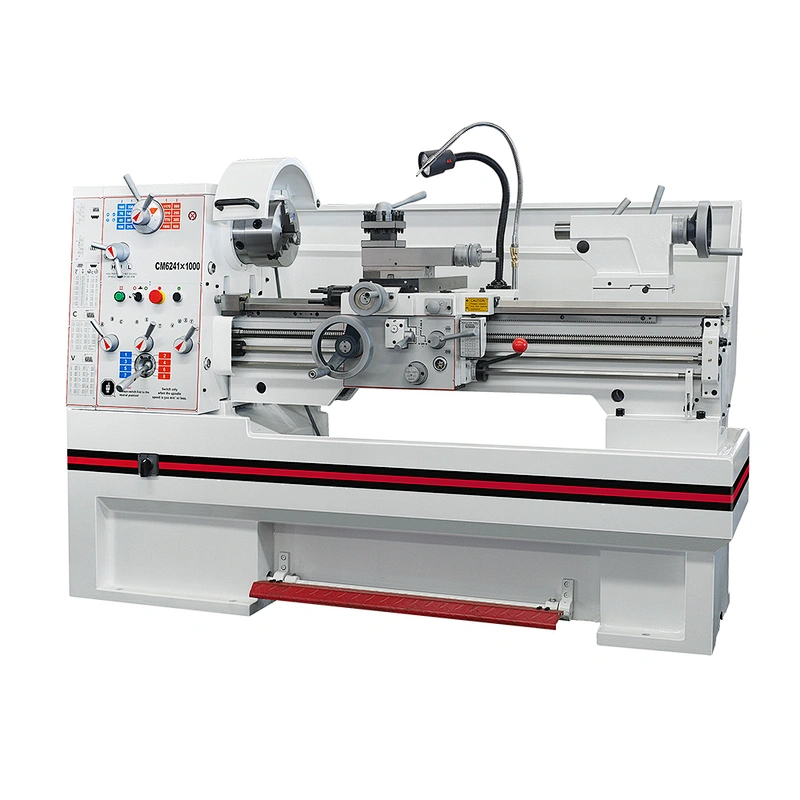

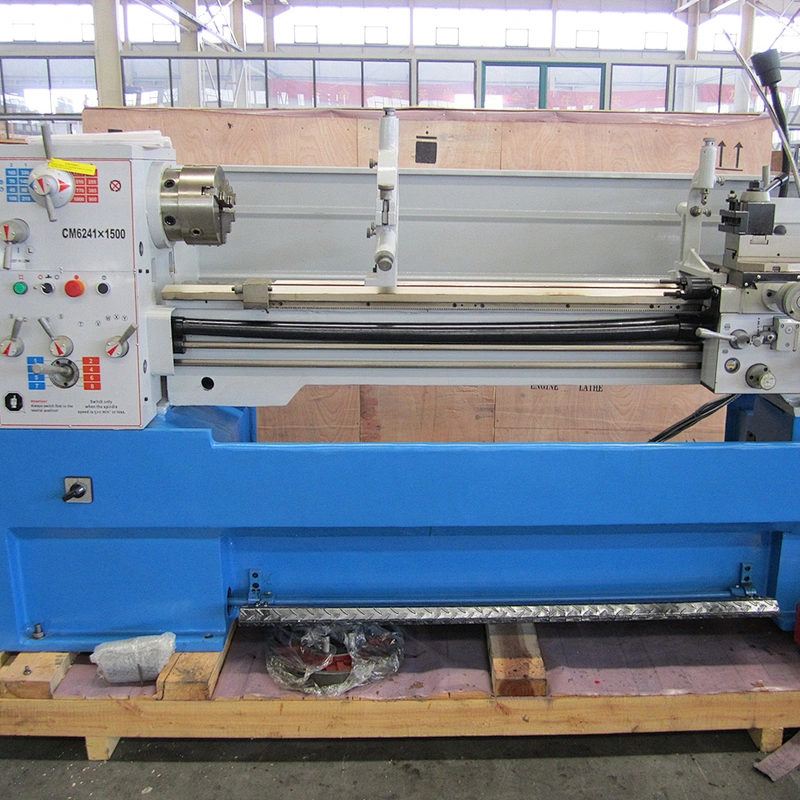

CM6241 | CM6241V | ||
Capacity | |||
Swing over bed | 410mm(16") | ||
Swing over cross slide | 255mm(10") | ||
Swing in gap diameter | 580mm(23") | ||
Length of gap | 190mm(7-1/2") | ||
Admits between | 1000mm(40")/1500mm(60") | ||
Center height | 205mm(8") | ||
Width of bed | 250mm(10") | ||
HEADSTOCK | |||
Spindle nose | D1-6 | ||
Spindle bore | 52mm(2") | ||
Taper of spindle bore | No.6 Morse | ||
Range of spindle speed | 16 changes 45-1800r/min | 30-550r/min or 550-3000r/min | |
FEEDS AND THREADS | |||
Compound rest travel | 140mm(5-1/2") | ||
Cross slide travel | 210mm(8-1/4") | ||
Lead screw thread | 4T.P.I. | ||
Max. Section of tool (WxH) | 20x20mm(13/16") | ||
Longitudinal feeds range | 0.05-1.7mm/rev(0.002"-0.067"/rev) | ||
Cross feeds range | 0.025-0.85mm(0.001"-0.0335"/rev) | ||
Threads metric pitches | 39kinds 0.2-14mm | ||
Threads imperial pitches | 45kinds2-72T.P.I | ||
Threads diametral pitches | 21kinds 8-44D.P. | ||
Threads module pitches | 18kinds 0.3-3.5M.P. | ||
TAILSTOCK | |||
Quill diameter | 50mm(2") | ||
Quill travel | 120mm(4-3/4") | ||
Quill taper | No.4 Morse | ||
Cross adjustment | ±13mm(±1/2") | ||
MOTOR | |||
Main motor power | 2.2/3.3kW(3/4.5HP)3PH | ||
Coolant pump power | 0.1kW(1/8HP),3PH | ||
DIMENSION AND WEIGHT | |||
Overall dimension(LxWxH) | 194 x 85 x 132cm/244 x 85 x 132cm | ||
Packing size(LxWxH) | 206 x 90 x 164cm/256 x 90 x 164cm | ||
Net weight/Gross weight | 1160kg/1350kg 1340kg/1565kg | ||
