Model | Max.Bending thickness(mm) | Pre.Bending thickness(mm) | Max.Bending width(mm) | Yield limit(mm) | Top roller diameter(mm) | Bottom roller diameter(mm) | Main power (kw) |
W11H-6x2000 | 6 | 5 | 2000 | 245 | 160 | 160 | 4 |
W11H-4x2500 | 4 | 3.5 | 2500 | 245 | 160 | 160 | 4 |
W11H-8x2000 | 8 | 6.5 | 2000 | 245 | 190 | 190 | 5.5 |
W11H-6x2500 | 6 | 5 | 2500 | 245 | 190 | 190 | 5.5 |
W11H-10x2000 | 10 | 8 | 2000 | 245 | 210 | 210 | 7.5 |
W11H-8x2500 | 8 | 6.5 | 2500 | 245 | 210 | 210 | 7.5 |
W11H-6x3000 | 6 | 5 | 3000 | 245 | 210 | 210 | 7.5 |
W11H-12x2000 | 12 | 10 | 2000 | 245 | 230 | 230 | 11 |
W11H-10x2500 | 10 | 8 | 2500 | 245 | 230 | 230 | 11 |
W11H-8x3000 | 8 | 6.5 | 3000 | 245 | 230 | 230 | 11 |
W11H-16x2000 | 16 | 13 | 2000 | 245 | 270 | 270 | 11 |
W11H-12x2500 | 12 | 10 | 2500 | 245 | 270 | 270 | 11 |
W11H-10x3000 | 10 | 8 | 3000 | 245 | 270 | 270 | 11 |
W11H-20x2000 | 20 | 16 | 2000 | 245 | 300 | 300 | 11 |
W11H-16x2500 | 16 | 13 | 2500 | 245 | 300 | 300 | 11 |
W11H-12x3000 | 12 | 10 | 3000 | 245 | 300 | 300 | 11 |
W11H-20x2500 | 20 | 16 | 2500 | 245 | 330 | 330 | 15 |
W11H-16x3000 | 16 | 13 | 3000 | 245 | 330 | 330 | 15 |
W11H-25x2500 | 25 | 20 | 2500 | 245 | 360 | 360 | 18.5 |
W11H-20x3000 | 20 | 16 | 3000 | 245 | 360 | 360 | 18.5 |
W11H-30x2500 | 30 | 25 | 2500 | 245 | 390 | 390 | 22 |
W11H-25x3000 | 25 | 20 | 3000 | 245 | 390 | 390 | 22 |
W11H-30x3000 | 30 | 25 | 3000 | 245 | 420 | 420 | 30 |

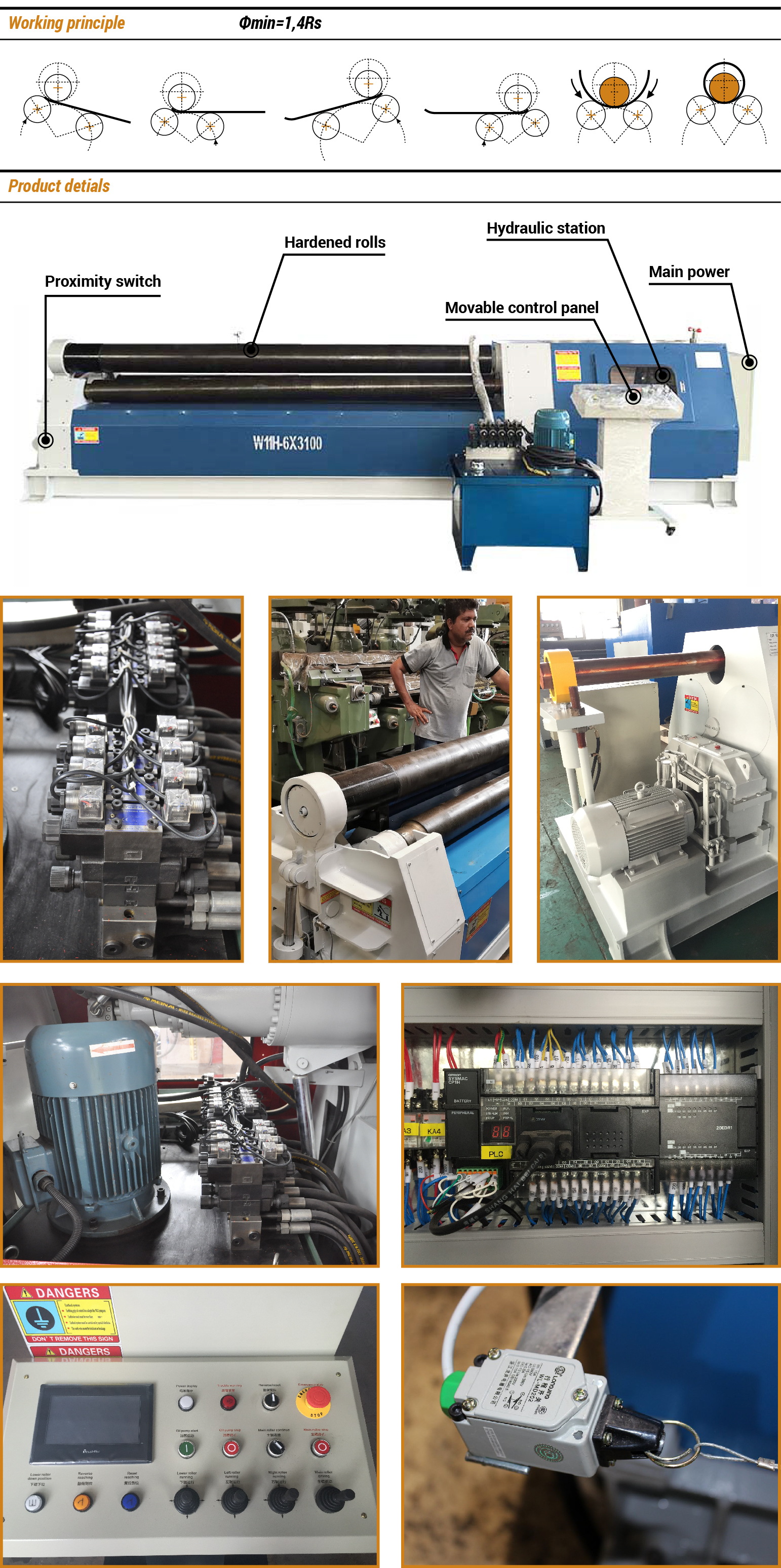

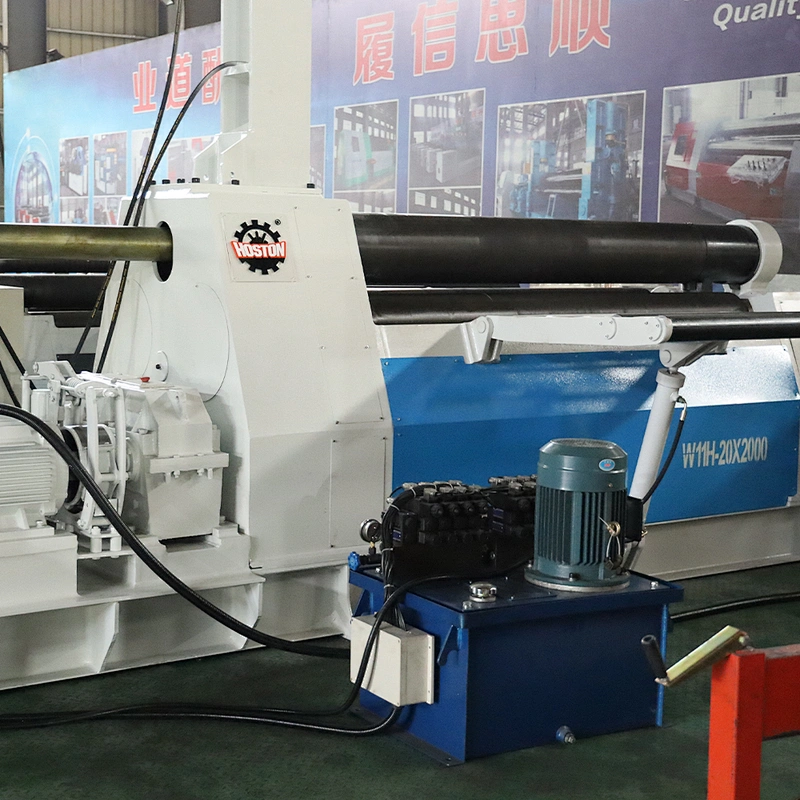

Double pinch function, pre-bending, roll and correct roundness can be finished without return once feeding the plate. Three drive rolls, the top roller fixed. Two bottom rollers move by an arc along a fix rotary center. Two bottom rollers can lifting up and down at the same time or by separately. The rotate of top roller and the lifting of two bottom rollers transmitted by hydraulic. Digital readout for lifting displacement.
