Machine Description:

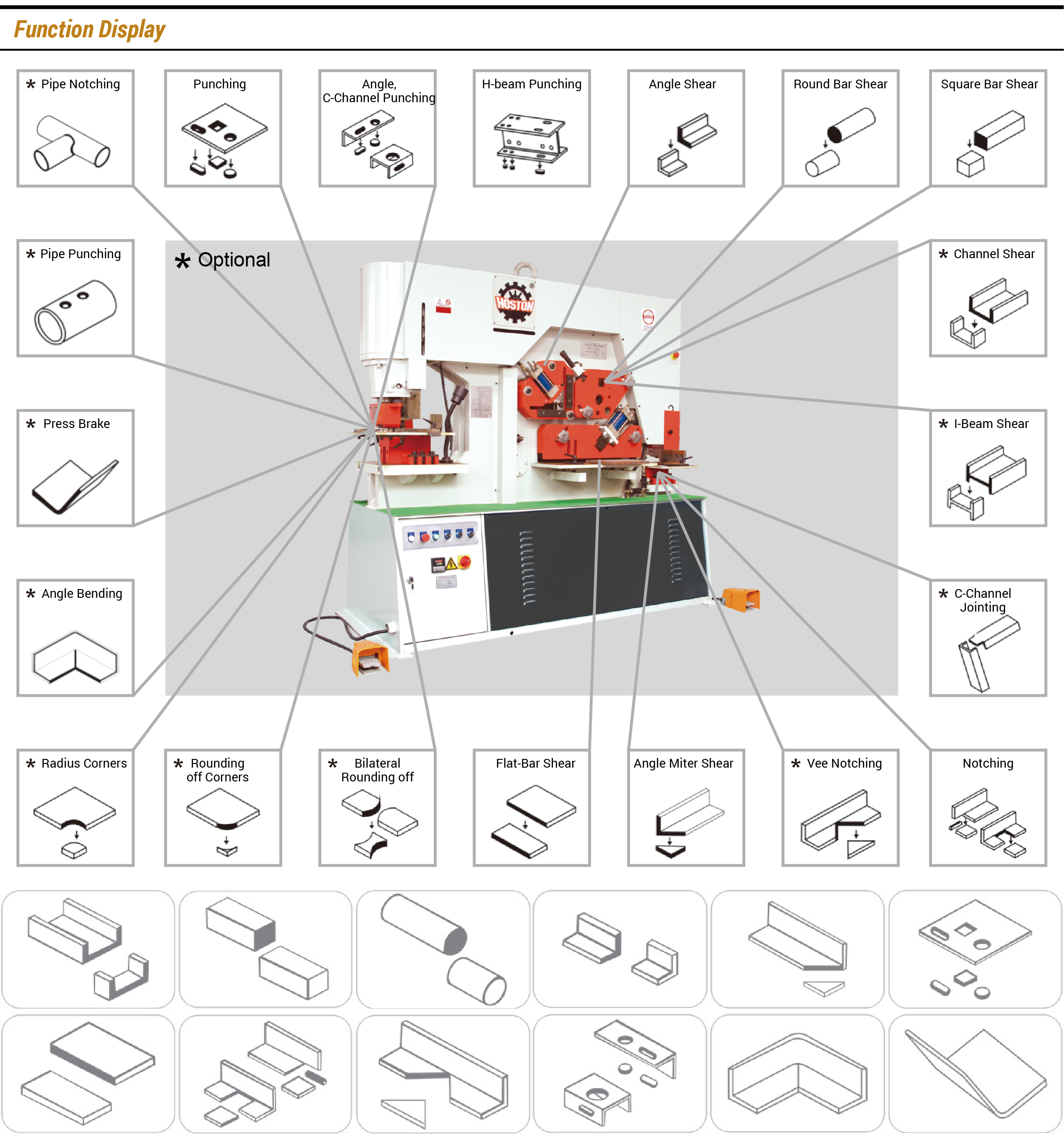

HOSTON industrial-grade HIW series hydraulic Iron Worker featuring multiple functions includes Punch, Angle Shear, Flat Shear, Round/Square Bar Shear, Rec. Notch, V-Notch, Channel Shear, I beam shear, shearing T-bar, Press Brake, Angle Bending and Pipe Notching.
It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.
We also have HIW-S and HIW-D series for your option.
HIW series industrial-grade hydraulic Iron Worker featuring multiple functions, including: Punch, Angle Shear, Flat Shear, Round/Square Bar Shear, Rec. Notch, V-Notch, Channel Shear, I beam shear, shearing T-bar, Press Brake, Angle Bending and Pipe Notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.
HIW-S series is improved machine on the base of standard HIW series. It goes along with automatic holding system and temperature cooling system. There is automatic holding system in profile shearing and plate shearing work position- the holders will fix the position of workpiece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency. In addition, there is temperature cooling system with machine- Through the temperature monitoring screen you can read the temperature of oil, 55 degree is our default configuration, once the machine is working, oil temperature goes higher than 55, the cooling system inside will run automatically to decrease temperature in order to protect machine.
HIW-D series is improved machine on the base of standard HIW-S series. It goes along with automatic holding system and temperature cooling system. At the same times, punching position and shearing position can work synchronously.
HIW-S Features | Automatic holding system in profile shearing and plate shearing work position- the holders will fix the position of workpiece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency. |
Through the temperature cooling system, the cooling system inside will run automatically to decrease temperature in order to protect machine | |
HIW-D Features | Punching position and shearing position can work synchronouslywhich mean two workers can work on the machine at the time. |
Item | Unit | HIW-45 | |
Hole Punching | Punching Pressure | Kn | 450 |
Max.Punching Capacity(diameter* thickness) | mm | Φ38*8 | |
Depth of Throat | mm | 175 | |
Ram Stroke | mm | 50 | |
Number of Stroke | times/min | 8-22 | |
Plate Shearing | Max.Shearing Thickness | mm | 15 |
Flat Bar(WxT) | mm | 200x15 | |
300x12 | |||
Angle Steel Shearing | 90°shearing of equal angle steel | mm | 100x100x10 |
45°shearing of equal angle steel | mm | 70x70x6 | |
Profile Steel Shearing | Round bar | mm | 30 |
Square bar | mm | 30 | |
T-bar | mm | 40x7 | |
C-channel/I-beam | mm | 80x45 | |
Notching | Thickness | mm | 8 |
Width | mm | 35 | |
Depth | mm | 75 | |
Material Tensile Strength | N/mm | 450 | |
Motor Power | kw | 3 | |
Overall Dimensions(LxWxH) | mm | 1450x590x1620 | |
Weight | kg | 1100 | |
