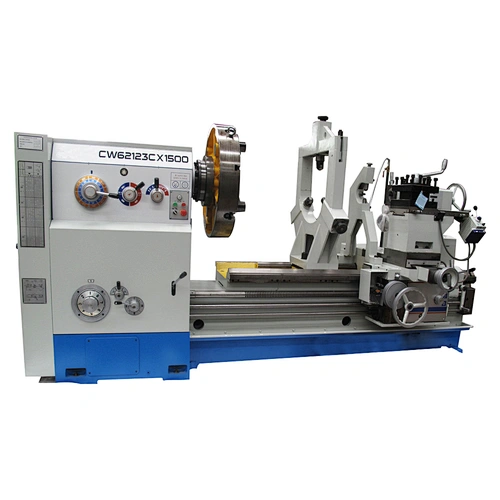

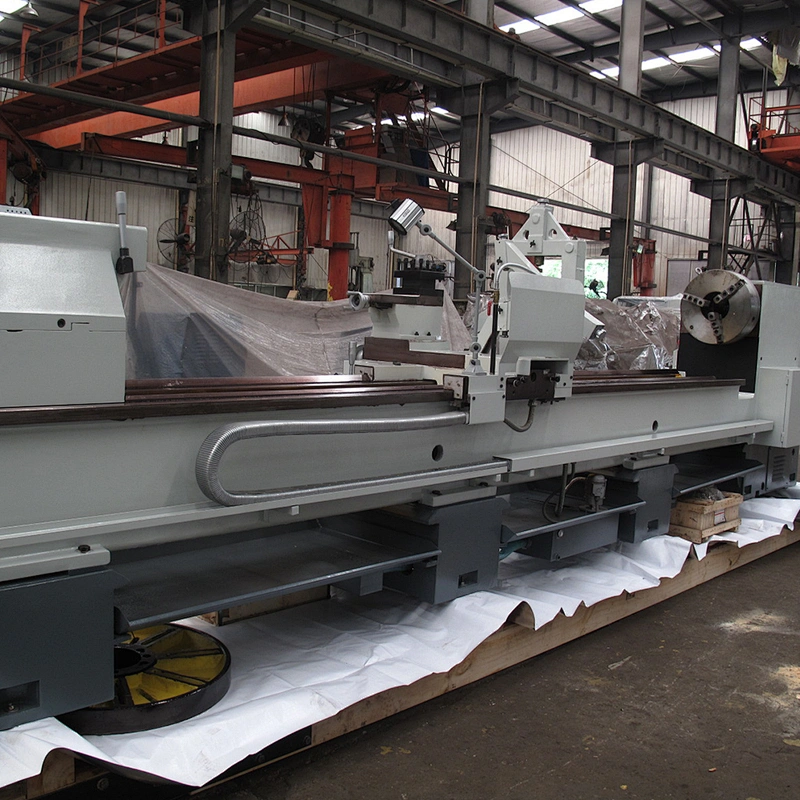

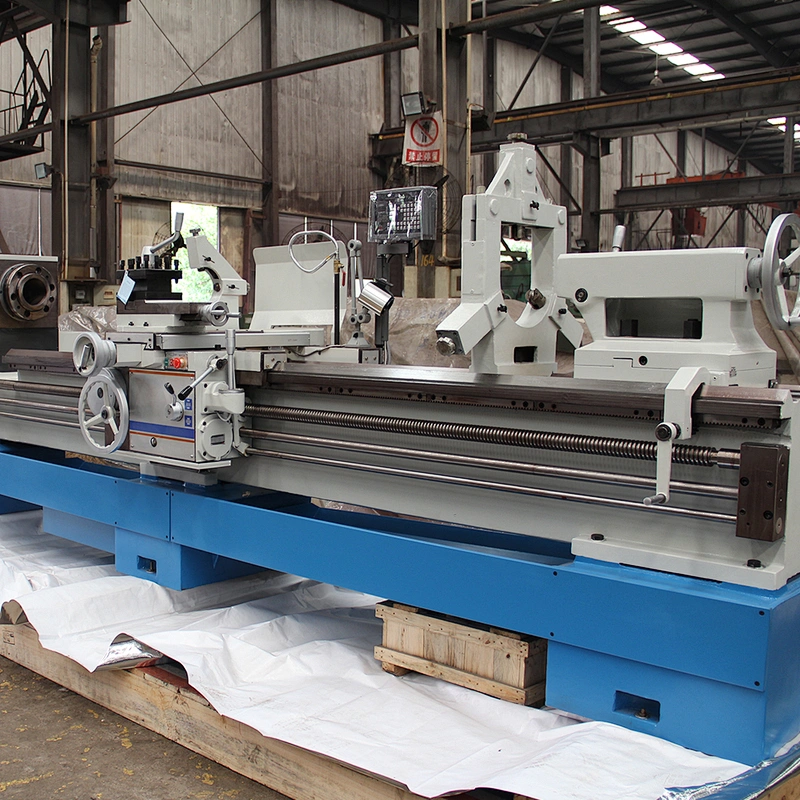

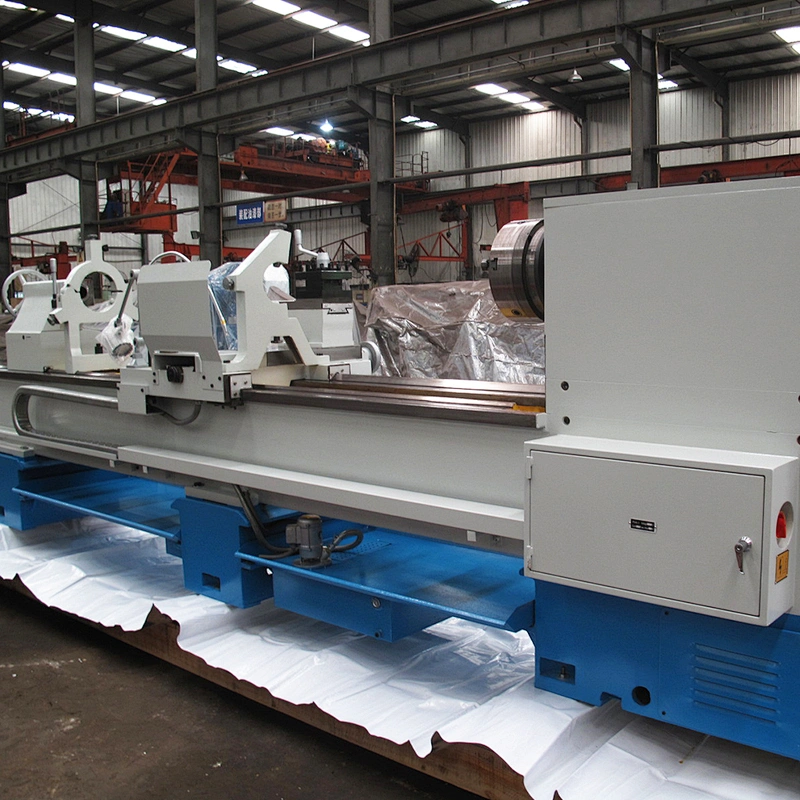

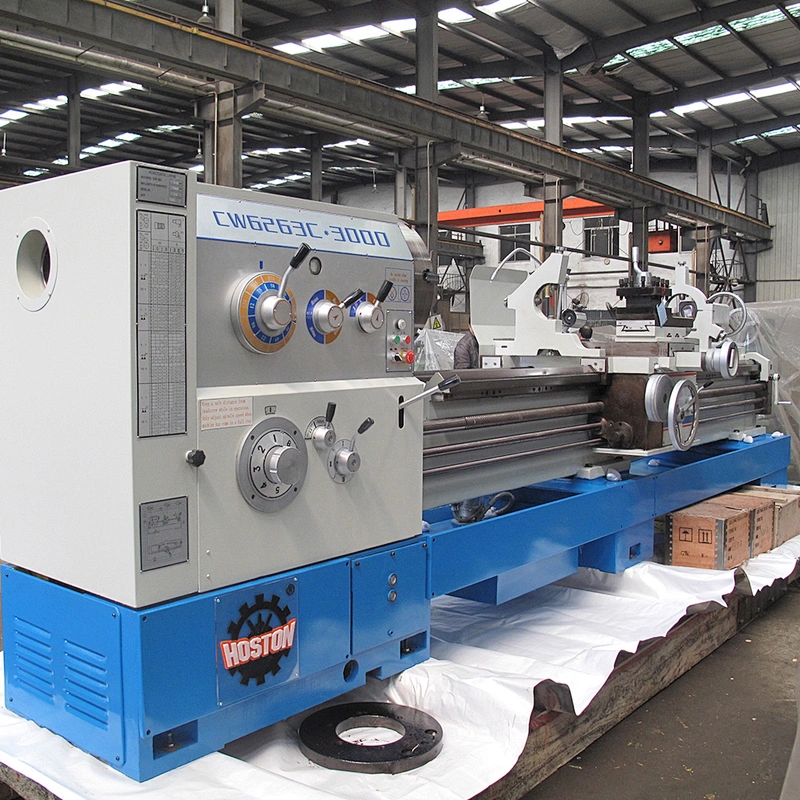

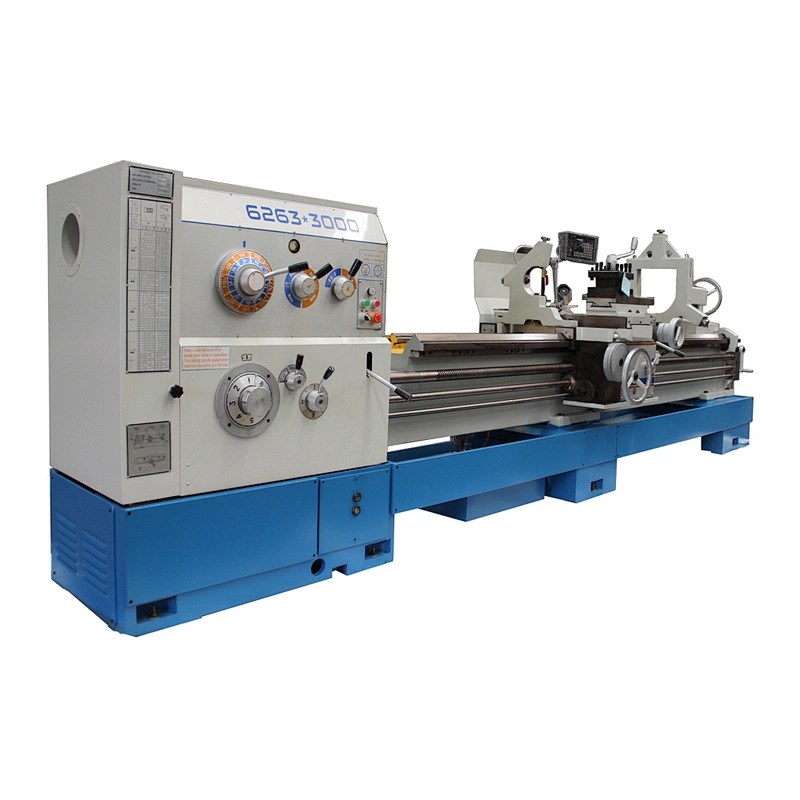

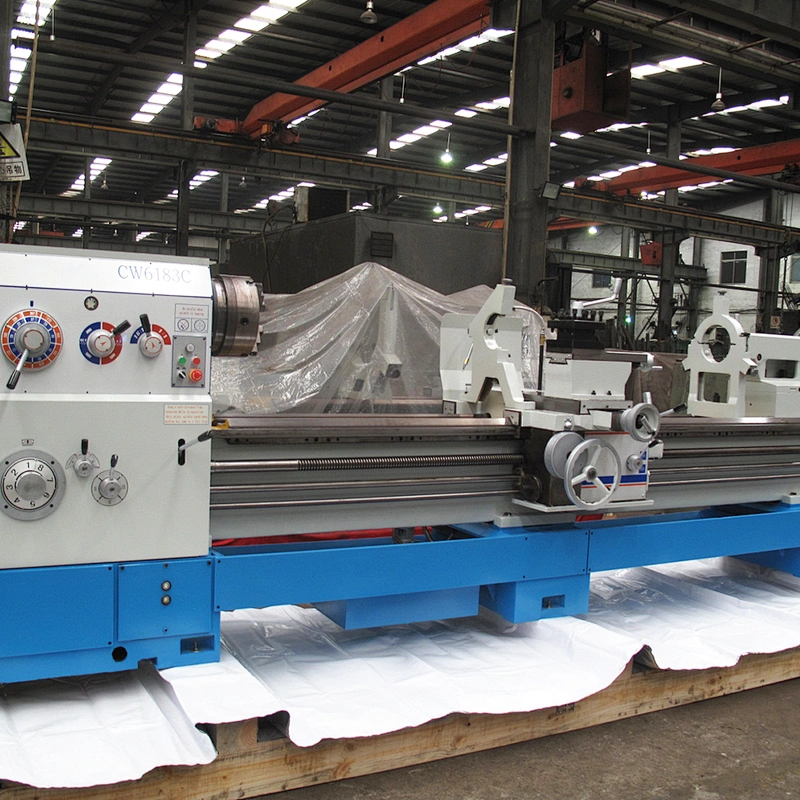

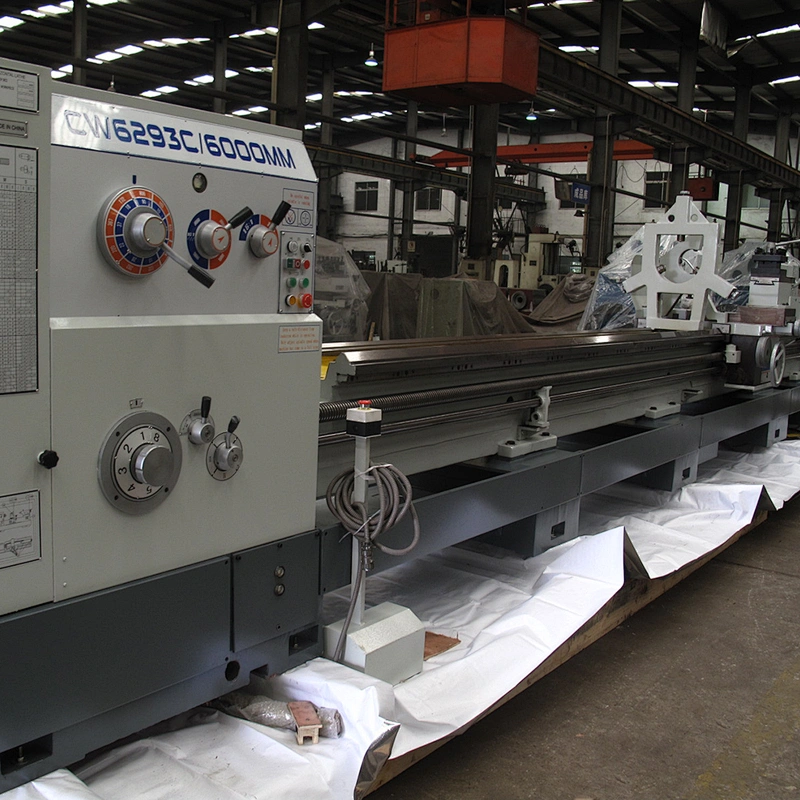

This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad. lt including: CW61(2)63C、CW61(2)83C、CW61(2)93C, ect. Distance between centers are 1000mm, 1500mm, 2000mm, 3000m, 4500mm, 6000mm. It is mainly used for all kinds of turning work. It can turn various parts such as outer circle, end face, conical surface, inner hole and thread, etc. It can also undertake drilling, reaming, boring and other processes.
Model
Unit
C W8163C
CW6263C
CW6183C
CW6283C
CW6193 C
CW6293C
Swing over bed
mm
630
830
930
Swing in gap
mm
890
1090
1190
Swing over cross slide
mm
350
550
650
Distance between centers
mm
1000,1500,2000,3000,4500,6000
Length in gap from face plate
mm
300
Spindle nose
C11 or D11
Spindle bore
mm
105,130
Spindle speeds/steps
r pm / steps
10—800/18
Cross slidle travel
mm
480
Top rest travel
mm
225
Rapid traverse
mm/min
Axe Z: 3240 Axe X : 1870
Quill diame t er
mm
100
Quill travel
mm
260
Quill taper
M6
Bed width
mm
550
Metric threads
mm/kinds
1—240/53
Inch threads
tpi/kinds
30-2/31
Module threads
Mm / kinds
0.25—60/46
Diametral pitch threads
Lpi/kinds
60—1/47
Main motor power
kW
11
Gross weight
kg
4200
4400
4500
4400
4600
4700
4650
4850
5000
5450
5650
5800
6500
6700
6800
7800
8000
8100
