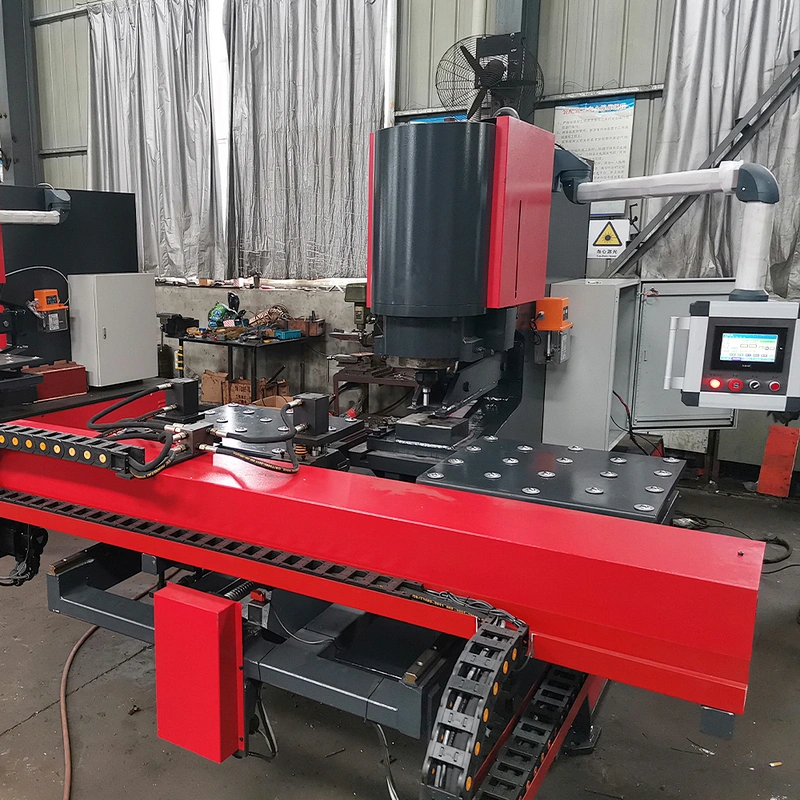

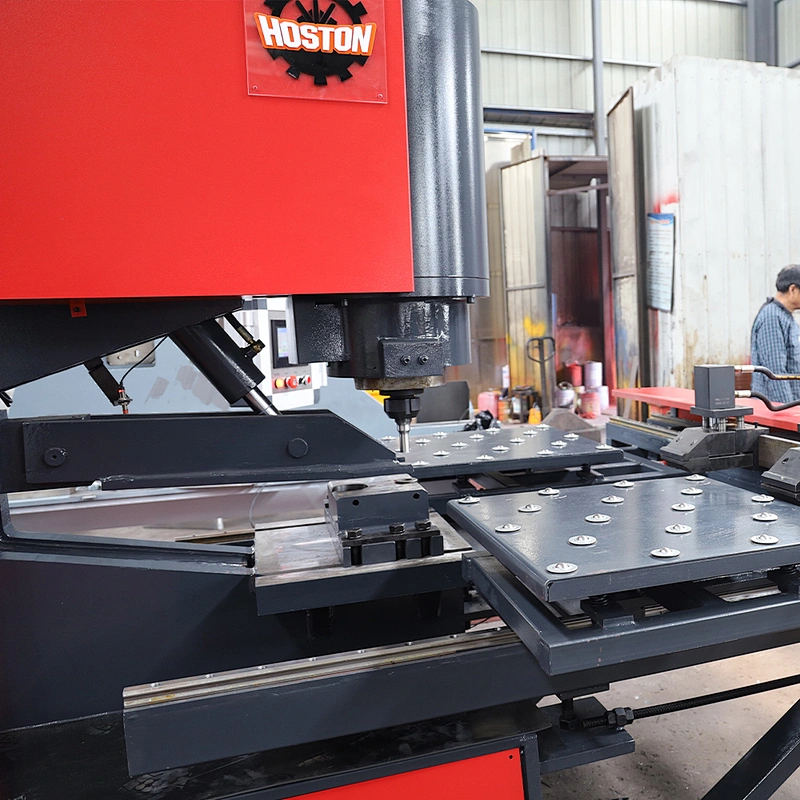

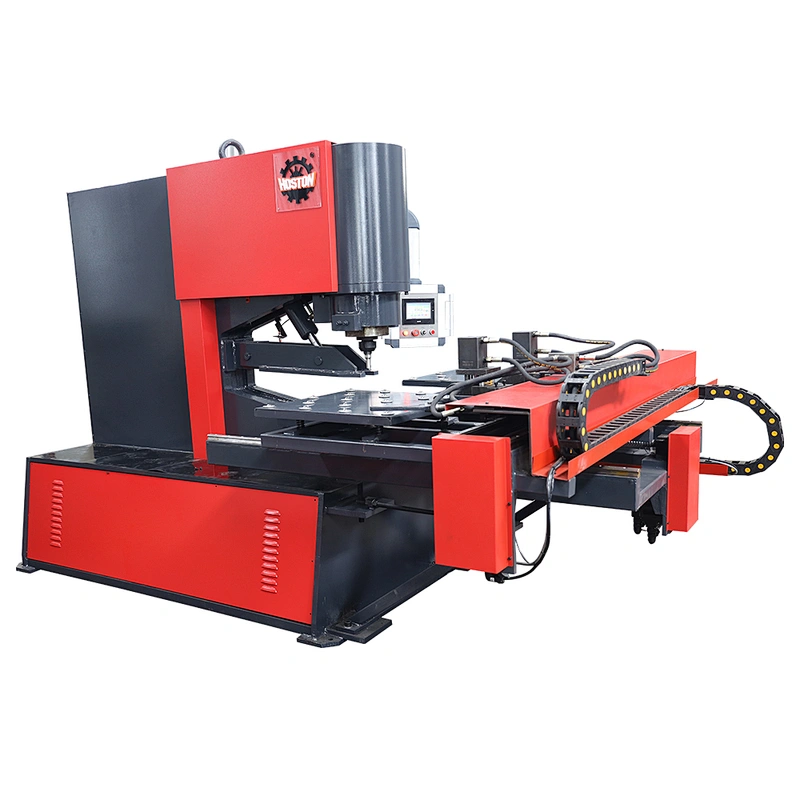

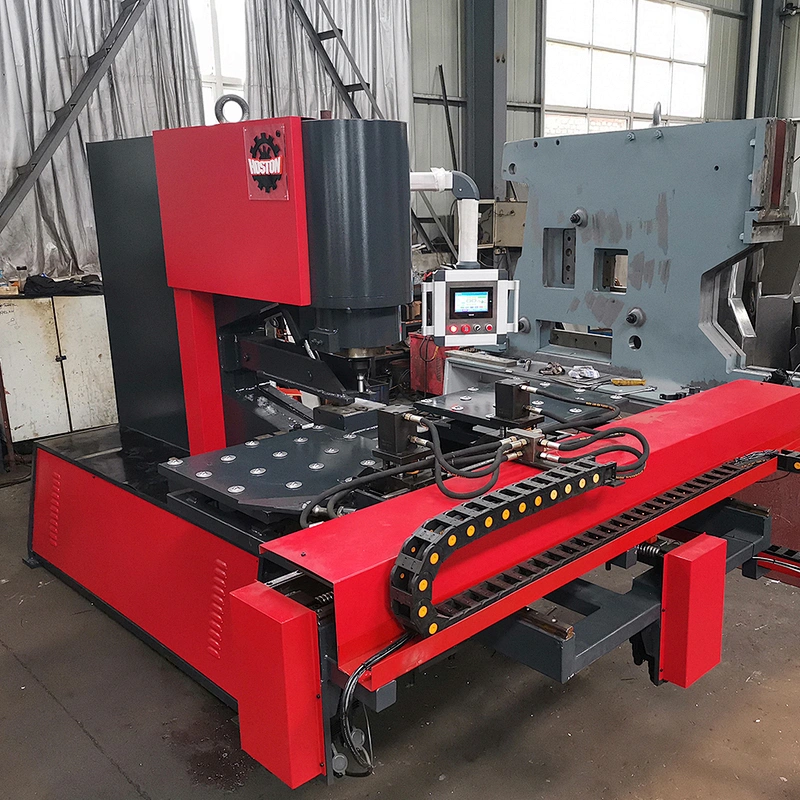

Equipment overview and characteristics
1. During the use of the CNC feeding platform, the servo motor is used to run, the speed range is wide, the conveying is stable, and there is no sliding friction movement between the material and the equipment, which can avoid damage to the material.
2. The structure is reasonable, the operation is safe and convenient, the processing is accurate, and it can be controlled by the chain of the punch to operate synchronously.
3. According to the combination of complete theoretical calculation and actual, to ensure that the required processing plate is accurately positioned during the punching process.
4. This model has passed long-term testing and practical proof, and has been effectively verified in terms of energy saving, safety and intelligent control.
5. The company will continuously improve and update through continuous efforts, and strive to design more perfect and practical industrial equipment for users.
Main technical parameters of punching machine:
1. Single-step machining accuracy: ± 0.1mm
2. Maximum punching pressure: 200 tons
3. Tensile strength of sheet: ≦ 450 Newton / mm²
4. Thickness of processed plate: ≤30mm
5. Punching diameter: 40mm
6. Throat depth: 700mm
7. Motor power: 15KW
8. Number of strokes: 10-22 times / minute
9. Overall dimensions of punch (L x W x H): 2010mm x 1310mmx2280mm

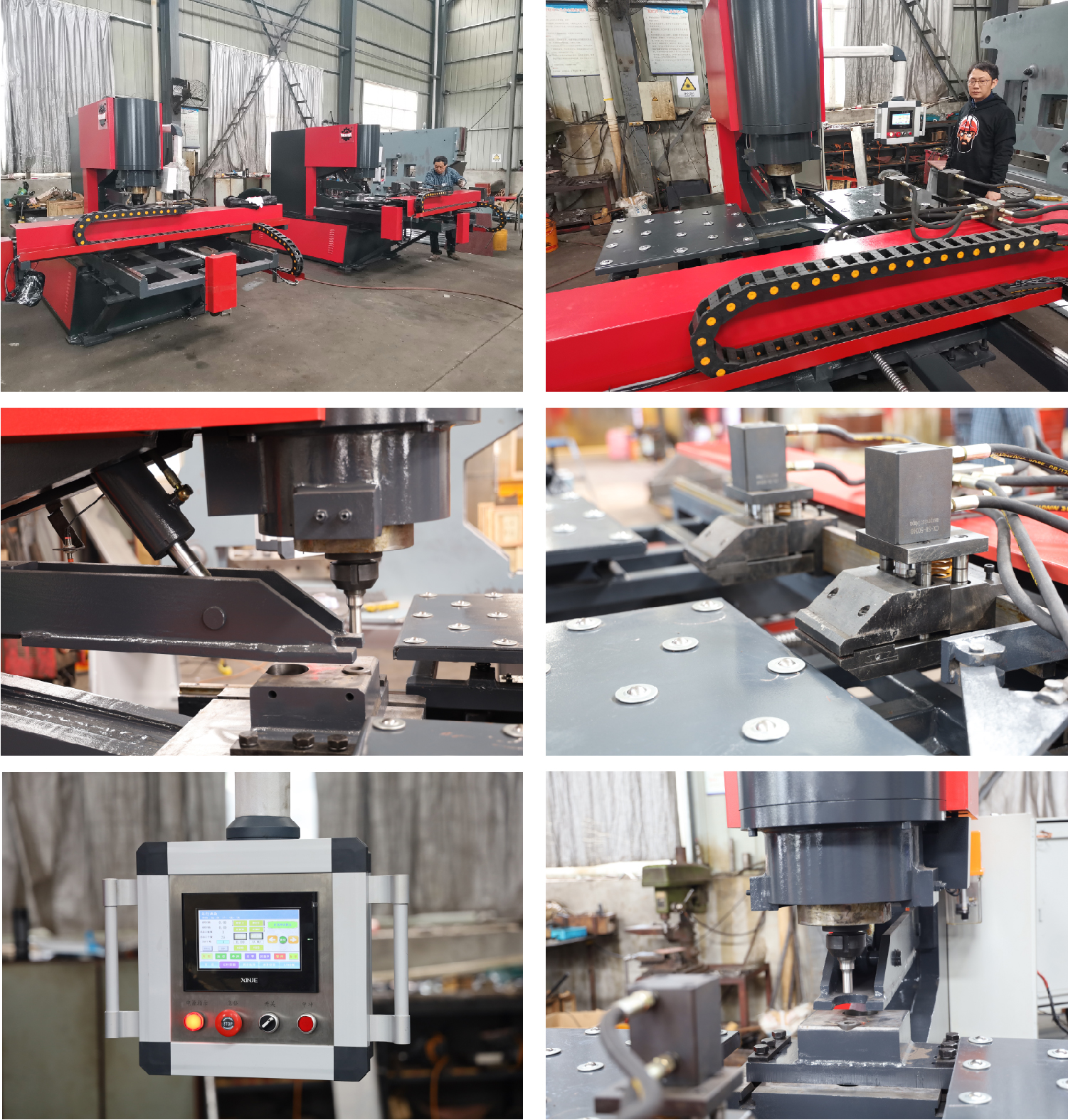

The structure and technical parameters of the feeder platform
1. Effective travel: 800mm * 1500 mm
2. Platform material: high-quality carbon steel profile welding production, anti-rust treatment coating.
3. The automatic feeding flat pusher uses the servo motor ball screw to push, and the hydraulic clamp is used to fix the plate to run smoothly.
4. The conveying support of the feeder platform adopts fixed balls for resistance-free conveying.
5. Operating modes: single manual, continuous automatic.
6. Drive rail material: high-temperature-resistant metal material is used, and the guide rail and its slider are used as moving parts.
7. Clamp: Hydraulic clamp is used, which is sensitive and easy to operate.
8. Drive mode: Controlled by servo motor stroke control system. The PLC system controls the feeding, positioning, forward, backward, reset and other operating modes.
9. Electrical control part: The whole control system is operated by PLC + LCD touch screen.
Technical description of feeder | |
Name | CNC feeder |
Type number | DG—0815 |
Feeding stroke (mm) | 800 * 1500 |
Main motor power (kw) | 1.5 |
Spindle speed (r / min) | 1500 |
Operating speed (times / min) | 80-120 |
Automatic feeding software | Touch operation, good man-machine interface |
Servo motor | Maixin servo motor |
Servo drive | EP drive, smooth operation |
Feeder screw | Taiwan TBI SFU screw, screw nut |
Electrical appliances, control cabinet | Self-made Zhengtai Electric Appliance and Vertical Cabinet |
Remote console | Convenient remote independent operation |
Automatic clutch system | Retrofitting the original clutch of the punch press with automatic feeding |
Touch screen | Taiwan FATEK 7 inch screen |
PLC | Taiwan FATEK |
